Non-Sterile T-Shaped Plates for Bone Synthesis - Model 427.006

Fracture Treatment Devices
Manufacturer: OSTEOMED-M LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

T-plate 4,5, article no. 427.007 T-plate 4,5, article no. 427.008 T-plates 4.5, article no. 427.003

Description

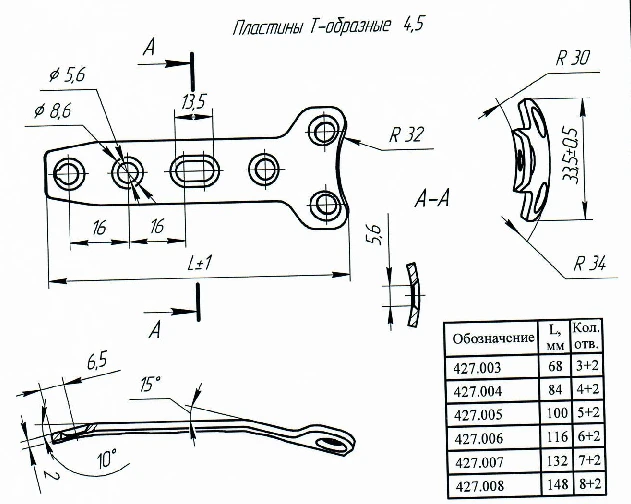

Non-sterile implantable plate made of solid material for steosynthesis of proximal intra-articular fractures of the b/tibia and humerus. Universal design for right and left side. Diaphyseal part: oblong hole for screw insertion, tapered taper at the end of the plate.

Metaphyseal part: 2mm deep rounding in the middle towards the distal part, multidirectional screw holes, inner radius R30mm along the entire length of the plate. The edges of the plate are rounded to avoid damage to the surrounding soft tissue. Laser marking of the product article.

Sterilisation required before use.

Specifications

Material
Titanium alloy
Diaphyseal width
17 mm
Number of holes in the diaphyseal part
6 pcs
Bending angle at the diaphyseal end of the plate at a length of 8mm
10
Metaphyseal width
33.5 mm
Number of screw holes in the metaphyseal part
2 pcs
Bending angle at the border of metaphyseal and diaphyseal parts
15
Sterility
no
Individual packaging
As required by GOST R ISO 14630-201
MRI compatibility
Armoured glass
Individual packaging
As required by GOST R ISO 14630-2017
Length
116 mm
Thickness
2 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
