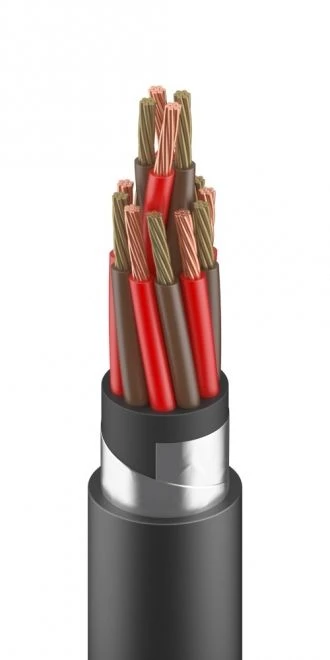

Multicore thermoelectrode cable with multi-conducting conductors, KMTGVEB grade

Thermoelectrode Cables

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Heat-resistant multicore thermoelectrode cables with multi-conducting conductors, KMTGVEVT grade Multicore thermoelectrode cable with multiwire conductive cores in cold-resistant version, KMTGVEB-HL grade Multicore thermoelectrode cable with multi-conducting conductors, KMTGVEBVng(A) grade Multicore thermoelectrode cable with multi-conducting conductors, KMTGVEVEVTng(A) grade Multicore thermoelectrode cable with multi-conducting conductors, KMTGVEVEVng(A)-HL grade

Description

Thermoelectrode cable with flexible conductive cores of metal and alloy or alloy pair with nominal cross-section from 0,50 to 2,5 mm2, with number of cores and pairs from 2 to 36 in the screen of alumoflex or alumopolyethylene film, with polyvinylchloride insulation in polyvinylchloride sheath. They are intended for fixed connection of thermoelectric converters (thermocouples) to measuring instruments.

Specifications

Designation of copper and alloy or alloy pair

CA - Chromel-alumel

Nominal voltage

380 V

AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores

1000 V

Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm

5000

Operating temperature range

-40...70 °C
