Available for Import

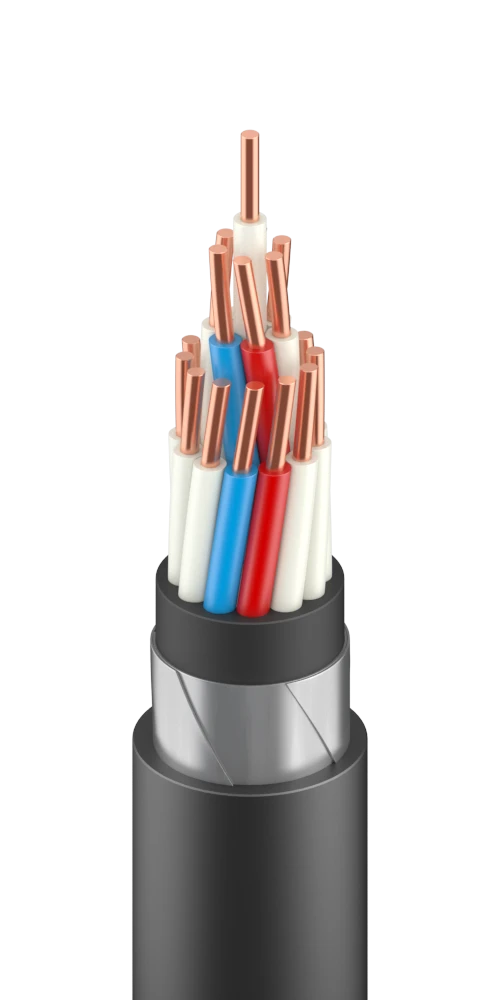

Multi-core Thermoelectric Cable KMTVEVBNg(A)-HL for Accurate Temperature Measurements
Manufacturer:
REЖКАБЕЛЬ LLC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Multicore thermoelectrode cable with single-wire conductive cores, grade: KMTVEBTBVBV
Multicore thermoelectrode cables with single-wire conductive cores, KMTVBVBVng(A) grade.
Multicore thermoelectrode cable with multiwire conductive cores heat-resistant, KMTGVEBTBV grade
Multicore thermoelectrode cable with multi-conducting conductors, KMTGVEBBV grade
Multicore thermoelectrode cables with single-wire conductive cores, KMTVBVVng(A)-LS grade
Description
Cable thermoelectrode with conductive cores of copper and alloy or alloy pair with nominal cross-section from 0,75 to 2,5 mm2, with the number of cores and pairs from 2 to 36, in a screen of alumoflex or alumopolyethylene film, with polyvinylchloride insulation, with armour in the form of wrapping with two steel galvanized tapes or in the form of braiding or wrapping with steel galvanized wires, in protective hose made of polyvinylchloride plastic of reduced flammability, in cold-resistant version.They are intended for fixed connection of thermoelectric converters (thermocouples) to measuring instruments.
Specifications
Designation of copper and alloy or alloy pair
M - Copper-Constantan
Nominal voltage
380 V
AC voltage test with nominal frequency of 50 Hz for 5 minutes between cores
1000 V
Electrical insulation resistance, recalculated per 1 km of length under normal climatic conditions, not less, MOhm
5000
Operating temperature range
-40...70 °C
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Payment Methods
