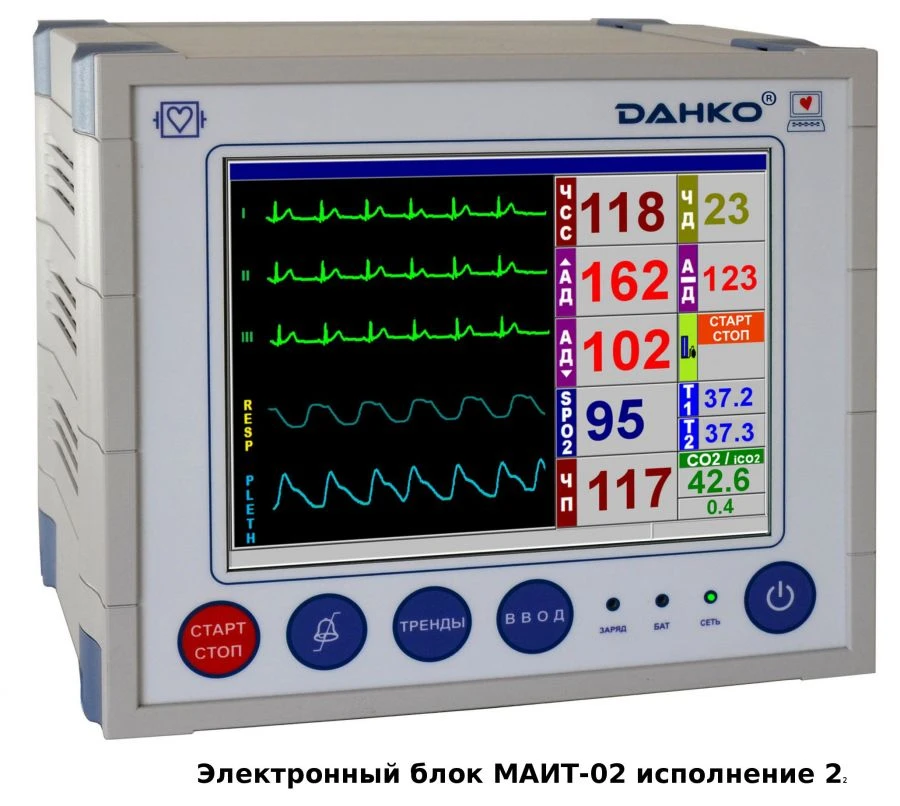

Monitor for anaesthesiology and intensive care MAIT-02 "Danko®", TU 9441002-48262933-2008, version 2

Functional Diagnostic Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Designed for continuous monitoring of patients (adults, children and newborns) who are in critical condition.
It is used in intensive care units, in operating units during anaesthesia, therapeutic and cardiology departments of hospitals of various profiles. It can be used in military medicine, ambulance, disaster medicine.
Compactness, mobility, low power consumption. Absolutely not tippable from any working position. High "survivability" in case of accidental fall. It is possible to change the angle of the monitor, as well as its fixation to a shelf or rack. It has a convenient window graphic interface with a touch screen. Large digits mode provides readability of physiological parameters at a considerable distance from the monitor. Quick access buttons on the front panel of the monitor.
The monitor has an optimal combination of price and quality and is designed for all types and levels of medical institutions.

Specifications

Length 220 mm

Width 260 mm

Height 210 mm

View Monitor of vital functions of the patient

Power supply voltage 198...242 V

Prohibitions of audible alarms availability

Overall dimensions,mm Not more than 260x210x220 mm

Accuracy class not applicable

Electromagnetic compatibility GOST R EC 60601-1-2

Defibrillator discharge protection GOST R MEC 60601-1

Type of working parts (degree of protection of the patient against electric shock when electrodes are applied to the patient) CF

Electrical safety protection class Protection class II

Compliance with SAFETY standards GOST R MEC 60601-1, GOST R MEC 60601-2-49

Computer software that allows the collection, processing, storage and visualization of monitored data, availability

Integrated electronic help system availability

Displaying the current date and time on the screen availability

Quickly set audible alarm limits using the touch screen without navigating through submenus availability

Virtual AD Quick Start button on the touch screen availability

BP measurement quick start button on the front panel of the device availability

Configuration of monitoring parameters by the user (enabling and disabling measurement channels at the user's choice) availability

Monitoring mode on the screen at least 6 ECG leads simultaneously availability

Number of displayed curves in standard mode at least 6

Number of displayed curves in the "large digits" mode Not less than 3

Big Digit Mode availability

Saves all settings including operating modes and trends in the monitor memory in case of power failure availability

Blocking the alarm sound for 4 minutes and resuming it after the specified time has elapsed availability

Visual indication and audible signaling in case of ECG electrode breakage or poor quality electrode placement availability

Visual indication and audible signaling in case of cardiac arrest (asystole) for a time exceeding (5 ± 0.3) s availability

Visual indication and audible signaling in case of measured values of physiological parameters exceeding the set limits availability

Setting the upper and lower alarm limits for all monitored parameters availability

Absolute error limits of CO2 measurement under normal conditions at pressure 100-150 mmHg. not regulated

Absolute error limits of CO2 measurement in normal conditions at pressure 70-100 mm.Hg. -8...8

Absolute error limits of CO2 measurement under normal conditions at pressure 40-70 mm.Hg. -5...5

Limits of permissible absolute error of CO2 measurement in normal conditions at pressure 0-40 mm.Hg. -2...2

Range of measurement of CO2 in exhaled breath 0...150

Inhalation CO2 measurement range 0...50

Permissible absolute error of temperature measurement in the range from 32 to 42 C -0.2...0.2 °C

Temperature measuring range (normalized) 32...42 °C

Temperature display range 25...50 °C

Number of temperature measurement channels 2 pc

Temperature measurement method Thermistor

TRAINING mode for automatic adjustment of the breathing channel to recognize breathing cycles Naliye

Selecting the breath sampling leads: RF or RL availability

Range of values of variable component of impedance at which pneumogram registration in the range of respiratory frequency is pro 1...10 ohm

Range of basic impedance values at which pneumogram registration is provided in the respiratory rate range from 3 to 9 500...1000 ohm

Changes the vertical size of the PG within the limits (display scale) 1-10

Permissible absolute error of PD measurement ± 2 min-1

Breathing rate (HR) measurement range by ECG channel (impedance method) (normalised error) 3-90

Display range of respiratory rate (RR) by ECG channel (impedance method) 3-150

Displaying the time of the last BP measurement on the screen availability

Display on the screen the remaining time until BP measurement (at the set measurement interval) availability

Display the measurement mode (adult, pediatric, or neonatal) on the monitor screen availability

Continuous BP measurement mode (user selectable) availability

Automatic detection of the inflation level in the cuff (referenced to the previous measurement) availability

Manual setting of neonatal pump level 60...120

Manual inflation level setting in adult mode 100...180

Automatic cuff inflation level setting from 100 to 280 mmHg. availability

Starting the BP meter at any time at the user's initiative availability

Automatic start-up of the BP meter with adjustable time interval between starts of 3, 5, 10, 15, 30 and 60 minutes availability

Relative permissible error of cuff pressure measurement in the range from 150 to 280 mmHg. -2...2 %

Absolute permissible error of cuff pressure measurement in the range from 20 to 150 mmHg. -3...3

Cuff pressure measurement range 0...280

Measurement of SpO2 and HR at low perfusion levels availability

Audible pulse accompaniment via photoplethysmogram channel (user-activated) availability

Display of photoplethysmogram with automatic switching of sensitivity. availability

Permissible absolute error of PD measurement Within ± 2 beats/min.

Heart rate (HR) measurement range, beats/minute 30-240

Permissible absolute error of SpO2 measurement in the range of SpO2 values from 50 to 69 % -3...3 %

Permissible absolute error of SpO2 measurement in the range of SpO2 values from 70 to 100% -2...2 %

Saturation (SpO2) measurement range 50...100 %

ECG Isolation Stabilization Filter availability

Using 3 electrodes (R,L,N) without connecting other electrodes to the ECG cable to capture only one ECG lead. availability

Removable electrode holders in the ECG cable availability

Selecting the HR lead: I, II or III and connecting other electrodes to the ECG cable to capture only one ECG lead. availability

ECG channel protection against defibrillator pulses availability

ECG QRS complex audio (user-activated) availability

ECG waveform sweep speed 12,5, 25, 50 mm/second

Time for measuring and displaying new HR values Not more than 20 seconds

Permissible absolute error of HR measurement (at R-beat amplitude from 0.2 to 4 mV) Within ± 1 beats/min.

Heart rate (HR) measurement range (normalized for error), beats/min. 30-240

Heart rate (HR) display range, beats/minute 15-300

Direct current in the patient's circuit flowing through any electrode Not more than 0,1 µA

ECG signal vertical display scale (sensitivity equivalent) 4 levels: 5, 10, 20 and 40 mm/mV

Input voltage range of ECG channel signals, mV 0.1-5

Output of ECG, PG, FPG curves and measured values of HR, BP, SpO2, HR, HR, HR, , T to a personal computer or central station. availability

Entering, saving patient data (name, ID number, gender, age, bed number, onset and duration of observation), and storing patient availability

Display of values (trends) of measured parameters in tabular form with intervals of 1, 5, 10, 15, 30 or 60 min (optional) availability

Displaying values (trends) of measured parameters in graphical form availability

Memorization of values (trends) of measured parameters for at least 24 hours with an interval of 1 minute availability

Setting of alarm limits and alarms for all measured ??????????? causing an alarm condition availability

Capnogram (CAP) display on the display screen. availability

Displaying a photoplethysmogram (PPG) on the display screen availability

Displaying a pneumogram (PG) on the display screen availability

Display of electrocardiogram (ECG) in six leads (I, II, III, aVR, aVL, aVF) on the display screen availability

Measure and display patient body temperature values (T1 and T2) on two channels availability

Measurement and display of inhalation and exhalation CO2 values availability

Impedance method measurement and display of respiratory rate (RR) values availability

Measurement and display of saturation (SpO2) and heart rate (HR) values by photoplethysmography availability

Measurement and display of non-invasive systolic (CAD), diastolic (DBP) and mean (MAP) blood pressure values availability

Ability to select the lead for ECG HR measurements availability

Measuring and displaying heart rate (HR) values from the ECG availability

Type of backup power supply Built-in batteries

Backup power supply operation in case of external power supply failure availability

Weight (with built-in batteries) 3 kg

Weight (without built-in batteries) 2.5 kg

Power consumption of the monitor from AC mains power supply 40

Monitor mount type Screw fixing holes in electronic unit housing

Mounting the monitor on a shelf, rack, in the car interior availability

Mechanism for changing the tilt angle of the monitor when mounted on a flat surface Extendable legs

Auxiliary controls (audible alarm blocking, start-stop BP measurement, call up trend view, call up menu of basic functions, call Buttons on the front panel

Basic control (all monitor functions) Touch screen

User Interface Fully graphic, window, interactive

Screen resolution At least 800x600 pixels

Screen Color Palette 24-bit TrueColour

Screen backlighting dimmable LED lamp

Screen type Touch - TFT LCD

Screen size 8

Carrying handle availability

Housing material Shatterproof plastic

Electronic unit design Version 2

Design solution Electronic unit

Age contingent of patients Adults, children, newborns

Monitoring standard Pulse oximetry, non-invasive blood pressure, electrocardiography, respiratory rate, body temperature, capnography

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
