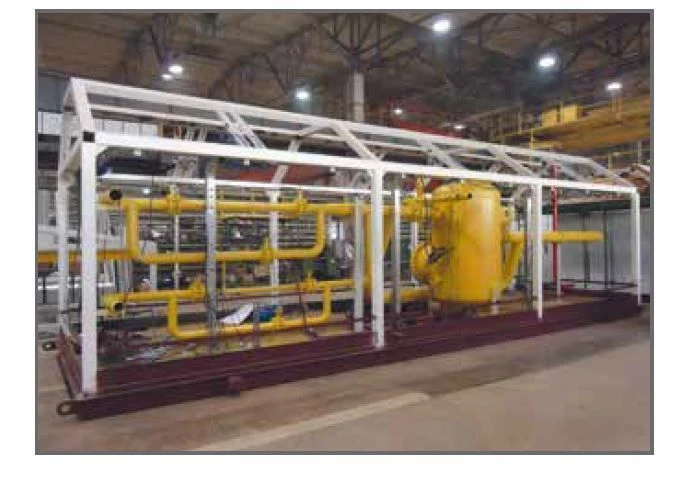

Methanol Armature Junction Box for Measuring and Distributing Methanol (Model GP10)

Block-box of armature units (GP10) is designed to measure flow, pressure and distribution of methanol of 90...98 % concentration to gas well pads, to inlet plumes from the pads, to installation of candle separator with liquid collector (GP13) and to pipeline SP.1 of gas collector blowdown (in the area of GP14). The following parts are included: -pipework; -system of natural and mechanical ventilation; -system of emergency, evacuation, working lighting of the station; <ul> <li>- instrumentation and control devices;</li> </ul>-power switchboard; -automatic fire alarm system; -system of notification and control of evacuation of people in case of fire. The station is a product of blocks mounted on site.
