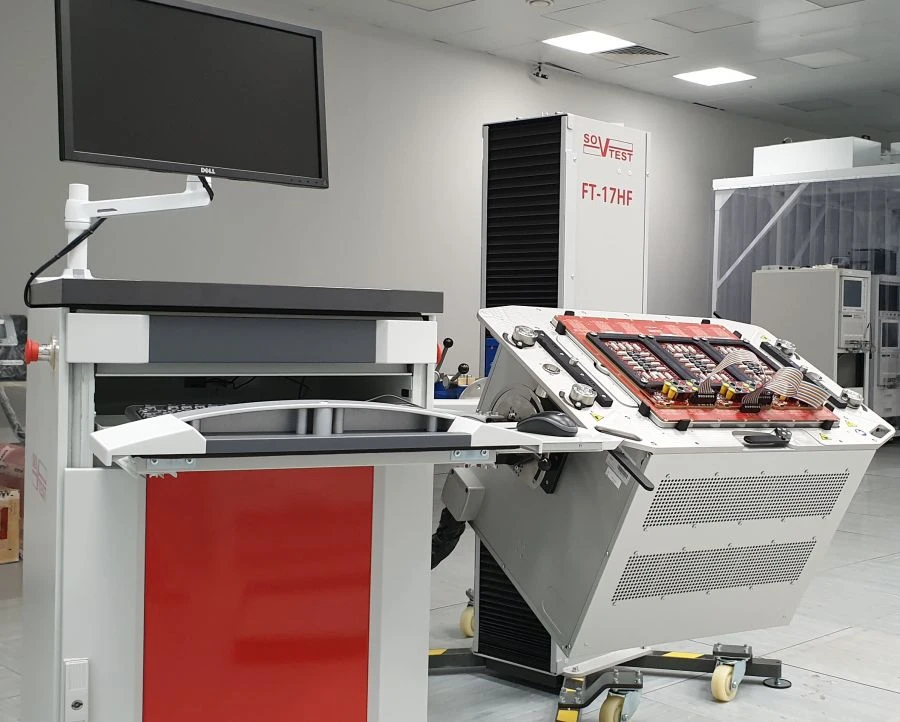

Measuring Stand for Monitoring Microelectronic Components FT-17HF-768

Measuring Stand for Monitoring Microelectronic Components FT-17HF-768

Brand: SovTest

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Maximum number of channels: 768 µGy

Maximum performance of functional control: 800 Mbps

Overall dimensions (W×H×H): 849x610x650

Maximum number of channel electronics boards: B1/B8 2100/900 MHz µGy

Supplier Information

SOVTEST ATE LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The FT-17DT-768 measuring bench for microelectronic components parameters control is designed for parametric, dynamic and functional control of digital and digital-analogue microcircuits with functional control performance up to 800Mbps.
The bench is an automated multichannel equipment. The parameters are controlled by applying signals to the pins of the chip under test, measuring the response signals and comparing them with the expected values.
Up to 12 boards of channel electronics with a total number of channels up to 768 can be installed in the stand.

Specifications

Maximum number of channels

768 µGy

Maximum performance of functional control

800 Mbps

Overall dimensions (W×H×H)

849x610x650

Maximum number of channel electronics boards

B1/B8 2100/900 MHz µGy

Vector memory capacity per channel

128 (256) Mb

Maximum number of simultaneously controlled microchips

96 µGy

Reproducible/measurable voltage by driver/comparator

-1.5...6 thousand m³

Driver/comparator voltage reproduction/measurement error

-0.015...0.015 thousand m³

Reproducible voltage by the measuring power supply

-5.5...14.5 thousand m³

Load capacity of the measurement power supply

1.2

Voltage setting error of the measuring power source

-0.1...0.1 set

Reproducible/measurable voltage of the static meter

-1.5...6 thousand m³

Reproducible/measurable current by the static meter

0...0.032

Number of sources-meters of static parameters

768 µGy

Reproducible/measurable voltage with a high-voltage static meter

-4...12.5 thousand m³

Reproducible/measurable current by high voltage static meter

0...0.08

Number of high-voltage sources-meters of static parameters

96 µGy

Weight

110

Integration with probe dispensers, test equipment, external instruments via interfaces

Armoured glass

Mode of operation

prolonged
