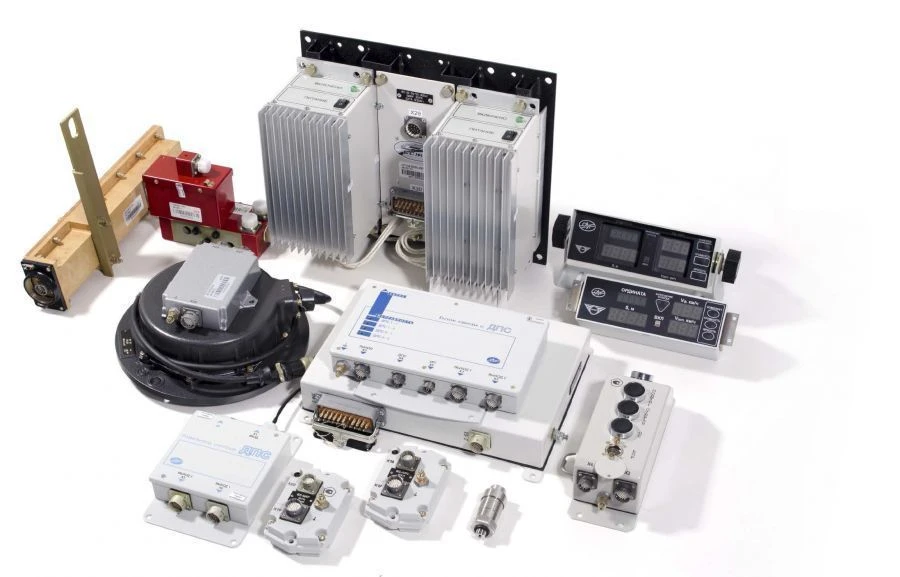

Locomotive Equipment for Automatic Train Brake Control SAUT-CM/485

Locomotive Equipment for Automatic Train Brake Control SAUT-CM/485

Brand: SAUT

$9,000 - $36,000 USD

MOQ: 1 sets

Key Features

Speed measurement channel: measurement range, km/h: 0…160

Speed measurement channel: tolerance limit of relative error of speed measurement, %: ± 5

Compressed air pressure measurement channel: measuring range, MPa (kgf/cm2 ): 0…1 (10)

Designation: Locomotive apparatus for automatic control system of train braking SAUT-CM/485 97C.06.00.00.00

Supplier Information

SAUT LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Locomotive hardware SAUT-CM/485 is designed for use on traction and motorcar rolling stock when working on railway sections equipped with track devices ALSN, ALS-EN and point channel devices SAUT-CM/485, as well as for operation on sections equipped with semi-automatic blocking devices at train speeds up to 160 km/h per block section with a length of at least 187 metres. SAUT-CM/485 equipment is installed on single-body, two- and three-section locomotives, electric trains and diesel trains.

Hardware sets are produced for specific types and series of locomotives. The SAUT-CM/485 equipment has the following operating algorithms: freight, passenger, electric train.

The algorithm of operation of the SAUT-CM/485 equipment is set by programming for each type of locomotive and its operation section. If it is necessary to work in freight-passenger traffic, the algorithm is set by a switch installed in accordance with the equipment project.

Specifications

Speed measurement channel: measurement range, km/h

0…160

Speed measurement channel: tolerance limit of relative error of speed measurement, %

± 5

Compressed air pressure measurement channel: measuring range, MPa (kgf/cm2 )

0…1 (10)

Designation

Locomotive apparatus for automatic control system of train braking SAUT-CM/485 97C.06.00.00.00

Equipment

SAUT-CM/485 equipment, form 97C.06.00.00.00-01

Operating temperature values, °C

-50… +50

Rated DC supply voltage, V

50 ± 5

Path measurement channel: tolerance limit of relative error of path measurement (distance to the point of aiming o

± 50

Compressed air pressure measurement channel: discretisation, MPa (kgf/cm2 )

0,004 (0,04)

Compressed air pressure measurement channel: tolerance limit of relative pressure measurement error,%

± 5

Average MTBF, h

50000
