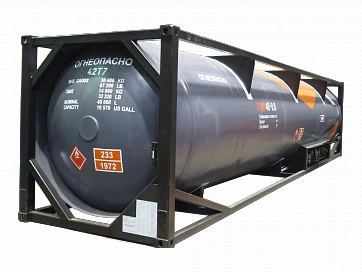

LNG and Ethylene Cryogenic Storage Tank Container Model KCM-40/0.7

LNG and Ethylene Cryogenic Storage Tank Container Model KCM-40/0.7

Brand: CryoTacho

$90,000 - $300,000 USD

MOQ: 1 pieces

Key Features

Vessel capacity: 40000?

Vessel pressure: (operating) 0.7MPa; (test) 0.94MPa

Vessel wall temperature: -161°?

Type: un t75

Supplier Information

Uralcryomash OJSC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The tank container model KCM-40/0,7 is designed for receiving, storing, dispensing of liquefied natural gas (LNG) and cooled liquid ethylene. It serves as a container for transporting by road, railway and sea transport, ensuring full safety and conditionality of the product.
KCM-40/0,7 consists of a cryogenic tank fixed on end frames, cryogenic shut-off, safety valves and instrumentation placed in the valve compartment, and a safe drainage device.
The flanges of the draining and filling device are located in the valve compartment, which is located at the bottom of the cylindrical surface of the tank, which in turn facilitates the LNG draining and filling process.

Specifications

Vessel capacity

40000?

Vessel pressure

(operating) 0.7MPa; (test) 0.94MPa

Vessel wall temperature

-161°?

Type

un t75

Material

09G2S-14

Equipment

ns; vn; nn

Mark

40

Name

Tank container

Designation

kcm

Assignment

for spg (liquefied natural gas)

Pressure in the isolation space

during operation (in warm condition) not more than 0.133 (1x10-3) pa (mmHg)

Control hold time

at least 54 (77) days

Weight of product to be poured

14.45t (16.4)t

Vaporizer material

aluminium alloy ad31 gost 4784-97

Sheath material

low-alloy steel 09g2s-14 gost 19281

Vessel material

corrosive steel 08x18n10t gost 5632

Material of piping and fittings

Corrosion-resistant steel 12x18n10t gost 5632; steel 1;4308/1;4301 according to din en or 1;4409/1;4401 according to w 10088-1; en 10213

Assigned service life

20 years

Initial filling level

(at 0;15 mpa abs.) not more than 0.361 (86); 0.41 (73.5) kg/l (%)

Volume of insulating space

12.21?3

Evaporation losses

(at stationary storage reduced to temperature: t=306k (33os) and p=0;1 mpa (760mmHg)) 0.28 (0.224) % per day

Pouring and draining method

fill bottom; top. drain bottom - evaporator or third-party source supercharging. (fill bottom; top. drain bottom - supercharged by a third party source)

Operating temperature range

-40 to +50°C

Insulation type

vacuum

Management of work operations

manual
