Linear Addressable Smoke Detector IPDL-264/1-50-R3 for Fire Detection

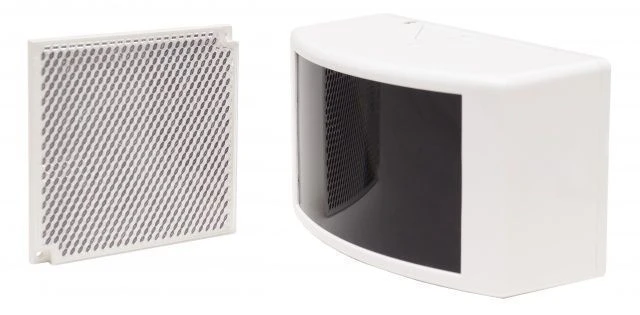

The fire smoke detector linear addressable analogue IPDL-264/1-50-R3 is a single-position device designed to work together with the reflector included in the delivery set. The reflector does not require power supply and adjustment. The reflector can be installed on non-capital walls, as well as on structures subject to minor vibrations and seasonal movements, which favourably distinguishes the IPDL-264/1-50-R3 from two-position devices. The wires of the communication line are connected only to one unit, which reduces the cable consumption, as well as the labour intensity of installation and adjustment. The detector is designed for fire protection of objects with complex operating conditions due to extended zones, large areas and high ceilings. The detector is structurally designed as a monoblock, consisting of a base, with the IPDL board mounted on it, the optical system and a cover with a built-in light filter.
