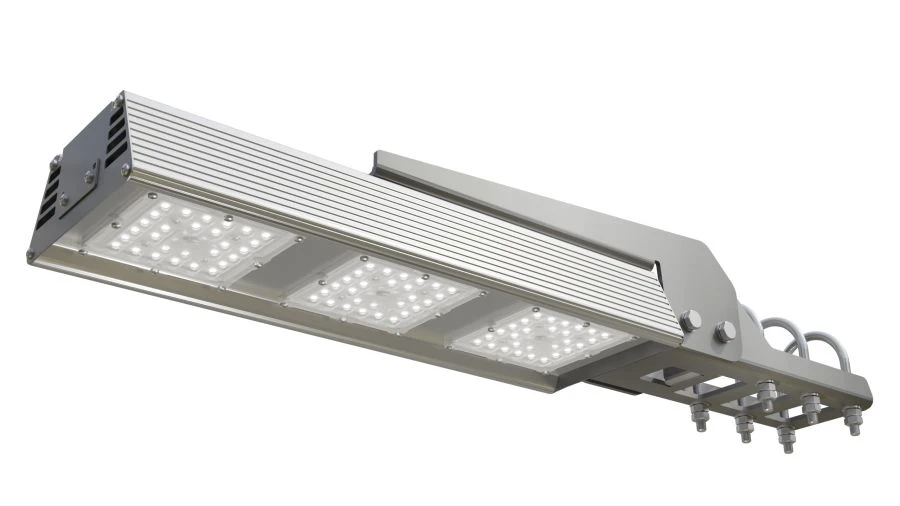

LEDMASTER TSR4-90-P-F90-5000K LED Lighting Fixture for Versatile Applications

LED Lighting Fixtures

Manufacturer: LEDMASTER LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Luminaire consisting of one LED module, one power supply, mounting elements, wiring and junction box for connection to the network. Designed to work in AC networks with a nominal voltage of 220V and frequency of 50 Hz. It is designed to control the luminous flux of the luminaire according to the protocol 1-10V and soft start.Console luminaire with adjustable angle of inclination is intended for illumination of open areas of railway infrastructure facilities (passenger platforms, station area, passages, service passages, etc.)

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Warranty period of operation

5 years

Climatic version

UHL1

Net weight, kg

5.4 kg

Height, mm

119.5 mm

Width, mm

145.5 mm

Length, mm

698.2 mm

Mounting type

Cantilever

Housing material

Anodized aluminum

Operating frequency range, Hz

50...60

Operating voltage range, V

176...264 W

Rated supply voltage, V

220 W

Protection class against electric current

Lowest ambient temperature

-60 °C

Highest ambient temperature

40 °C

Degree of protection (IP)

Light intensity curve (LIC)

D - deep

Power factor

0.98

Ripple factor in dimming mode 100%

1 %

Color rendering index at dimming mode 100%(CRI)

Correlating color temperature at 100% dimming mode (CCT),K

4853 K

Light output at dimming mode 100%, Lm/W

169 Lm/W

Power consumption in dimming mode 100%, W

88 W

Luminous flux at dimming mode 100%,Lm

14944 lm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
