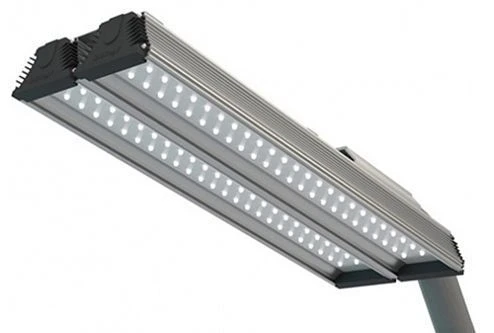

LED luminaire Elbrus 96.32540.174 (BCC type G, W, K)

LED Lighting Fixtures

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The street lamps of "Elbrus" series have excellent technical characteristics. High quality equipment meets the requirements of today. Recommended for the creation of outdoor lighting system for installation at a height of 11 - 14 metres.
Field of application: class A and B motorways, tunnels, bridges, airports, urban infrastructure, railway platforms, park areas, squares. Optionally can be equipped with a wall mount for cantilever luminaire.

Technical Specifications

Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Type of product according to PP RF 616	Lighting fixtures and lighting fittings other than those included in other groupings
Correlating color temperature (CCT)	5000 K
IK code	9
Power factor	0.97
Power consumption, W	174 W
Rated supply voltage	230 V
Upper operating temperature value	40 °C
Degree of protection (IP)	67
Type of supply current	Variable
Height	65 mm
Climatic version	UHL1
Color rendering index (Ra)	70
Power consumption	174 W
Housing material	aluminum alloy ad31t1 with anodizing
Mounting	cantilever; swivel
Type of diffuser	transparent polycarbonate
From the management	dali; 1-10v; astrodim
Luminous flux, lm	32540 lm
Width	234 mm
Length	652 mm
Type by installation location	cantilever, ground, pole lanterns
Lower operating temperature value	60 °C
Net weight	6.5 kg
Protection class against electric current	I
Pulsation factor	1 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
