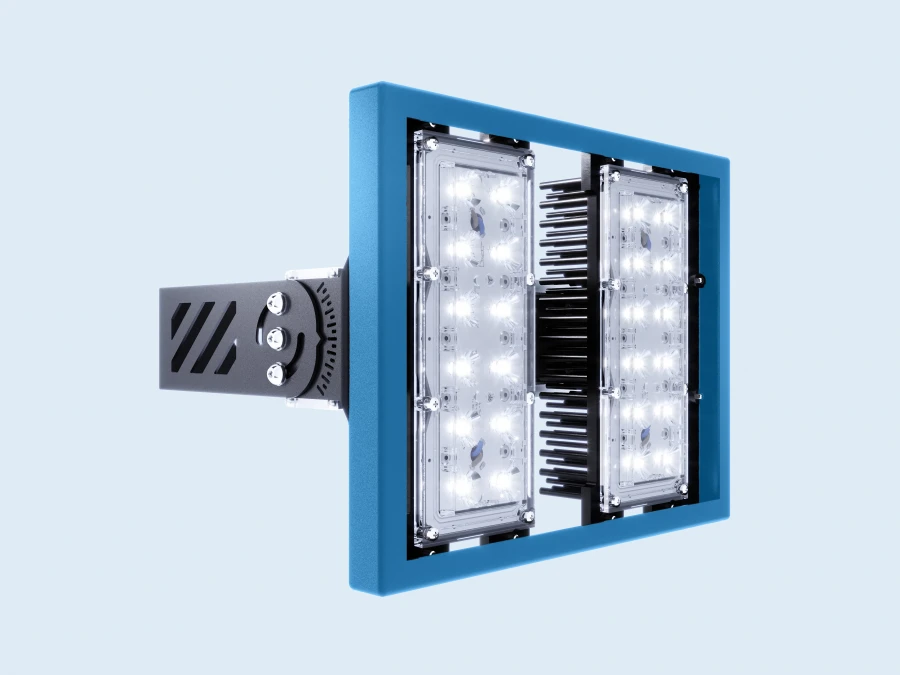

Available for ImportLED Light LV-FENIX x24 - Perfect Solution for Hot Workshops
Manufacturer:LEDVIZOR LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
It is an optimal solution for lighting hot shops with temperatures up to +70C. It has a degree of protection against moisture and dust IP67. One of 8 types of optics can be installed on the device, and they can also be combined on one device. Large area of needle heat sinks and diodes loaded with a small current allow to obtain high efficiency - up to 143 lm/W and at the same time effectively dissipate heat.
Specifications
Type of product according to PP RF 616
Lighting fixtures and lighting fittings other than those included in other groupings
Color rendering index (CRI), not less than
70
Degree of protection (IP)
IP67
Type by installation location
stationary, outdoor, on a bracket
Climatic version
UHL1
Light output, lm/W, not less than
125
Pulsation factor
5 %
Luminous flux, lm
7200...7800 lm
Upper operating temperature value
70 °C
Power consumption
54 W
Housing material
aluminum, polymer coated steel
Height
120 mm
Width
202 mm
Length
259 mm
Net weight
3 kg
Lower operating temperature value
-40 °C
Protection class against electric current
I
Correlating color temperature (CCT)
2700...6500 K
Power factor
0.95
Rated supply voltage
230 V
Type of supply current
Variable
Designated service life
B1/B8 2100/900 MHz year
Warranty period of operation
5 year
Type of conditional light intensity curve in the equatorial plane
circular
Type of light intensity curve in characteristic meridional planes
L/H/D/S
Light distribution class
?
Mains frequency
SBVVBG
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
