Available for Import

LED Light Fixture TEHAS СН7П450АПК for Versatile and Adjustable Illumination

LED Ceiling & Wall Lights

Manufacturer: TEGAS ELECTRIC LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

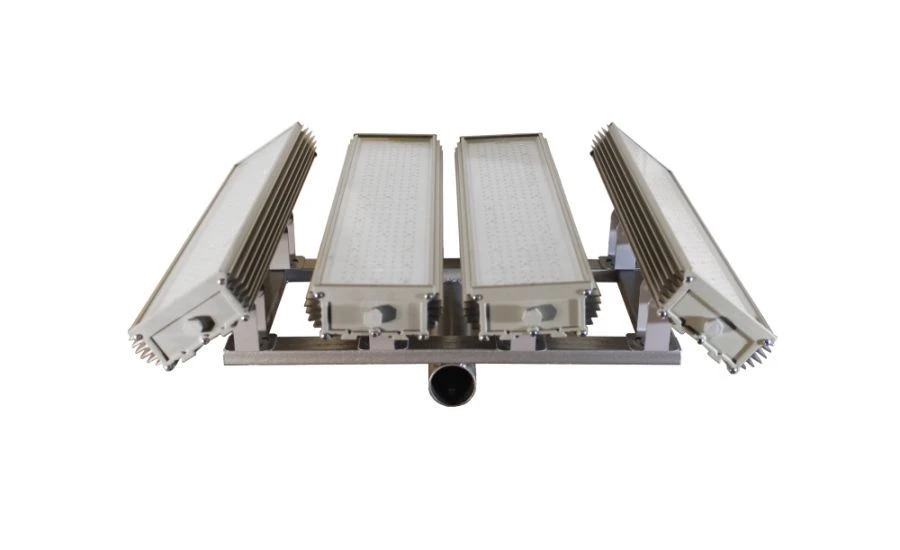

Consists of four modules, each on an individual swivel mount, which allows you to change the angle of rotation of the lights increasing or focusing the area of illumination, each of the modules has its own output for power supply from the network. An additional advantage is the full repairability of the luminaire after the expiry of the warranty period. The luminaire is made in an aluminium extruded all-metal housing and has fins along the entire length of the housing, which allows to evenly remove excessive heat from the heated LEDs and electronic components.

LEDs efficiency up to 180lm/W. Location of LEDs on the aluminium board thickness: 1mm. The power supply is developed by our company, patented, the luminaire is certified.

In the luminaires "Tegas" built in a special valve to equalise the internal pressure with the atmospheric pressure of the environment during heating during operation (sealing of the device is not broken).

Specifications

Type of lamps (LED, incandescent, fluorescent)

LED

Power

450 W

Luminous flux

63000 lm

Light temperature

2700...6500 K

Dissipation angle

120

Type of light intensity curve (LIC)

Cosine "D."

Voltage

220 V

Pulsation factor

0.9 %

Protection class

Light Transmittance Index

at least 80RA

Dimensions

730x660x190 mm

Weight

19.1 kg

Housing material

Anodized aluminum

Diffuser material

PMMA

Type of diffuser

transparent

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
