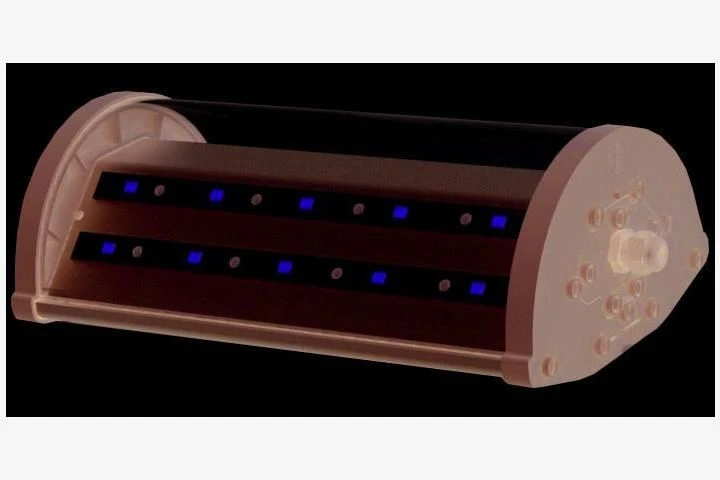

LED Explosion-Proof Lighting Fixture SSO-A-220-003-N, T-UHL1-Ex

Available for Import

LED Explosion-Proof Lighting Fixture SSO-A-220-003-N for Hazardous Area Applications

LED Lighting Fixtures

Manufacturer: PROTON OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The luminaire LED illuminating type CCO of white colour of luminescence is intended for work in a network of alternating current for external and internal illumination of objects in explosive zones of class 2 according to GOST IEC 60079-10-1-2011, zones dangerous on ignition of combustible dust according to GOST IEC 61241-1-2-2011. The luminaire has a housing made of aluminium anodised profile with protective glass made of impact-resistant, optical, UV-protected polycarbonate.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings, other than those included in other groupings, intended for use with LED lamps and other LED light sources

Luminous flux

3250 lm

Main functional purpose

Outdoor lighting

Power consumption

26 W

Degree of protection

IP65

Length

310 mm

Width

180 mm

Height

107 mm

Weight

3 kg

Explosion protection version

Ex nR II T4 Gc / DIP A21 TA(110...135) C

Nominal frequency

SBVVBG

AC supply voltage

140...265 V

DC supply voltage

200...370 V

Operating temperature range

-40...60 °C

Climatic version

UHL1

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
