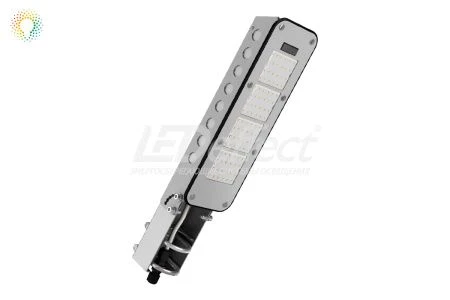

LED Emergency and Security Lighting System OPTIMA 2.0 OP 51-75W LE-SKU-28

Available for Import

LED Emergency and Security Lighting System OPTIMA 2.0 OP for Industrial Areas

LED Lighting Fixtures

Manufacturer: LED-EFFECT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Luminaires with LED light sources of OPTIMA series LE-SCU/SBU-28 with power of 18-36W Luminaires with LED light sources of OPTIMA 2.0 OP series with power 36-50 W LE-SKU-28

Description

Luminaires Optima 2.0 OP SKU are designed to create systems of duty and alarm lighting perimeters of objects and their territories, in particular industrial areas, areas of high control, railway platforms, crossings, etc. The luminaire housings are made of galvanised steel and painted with special powder paint, all structural elements are resistant to environmental influences and are not subject to corrosion. Optima 2.0 perimeter security series is characterised by high reliability and durability.

To create a comfortable lighting environment, OPTIMA series luminaires are equipped with secondary optics (KSS-S) made of light-stabilised polycarbonate. It is also possible to equip the luminaires with KSS-D This series is designed for cantilever mounting with a universal bracket. There is an optional protection of the power supply cable with a corrugated pipe.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Type of supply current

Rated supply voltage

220...230 V

Power consumption, W

51...75 W

Power factor

0.95

IK code

Correlating color temperature (CCT)

2700...6500 K

Lower operating temperature value

SBVVBG °C

Net weight

5 kg

Gross weight

5.4 kg

Protection class against electric current.

Color rendering index (Ra)

70...90

Length

630 mm

Width

120 mm

Height

70 mm

Housing material

Aluminum

Power consumption

75 W

Upper operating temperature value

SBVVBG °C

Luminous flux, lm

12000 lm

Pulsation factor

1 %

Climatic version

UHL1

Type by installation location

Universal

Color temperature

70...90 K

Power supply voltage

220...230 V

Correlated color temperature

2700...6500 K

Degree of protection (IP)

66/67

Input voltage

220...230 V

Power

51...75 W

Luminous flux, lm

5600...12000 lm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
