Available for Import

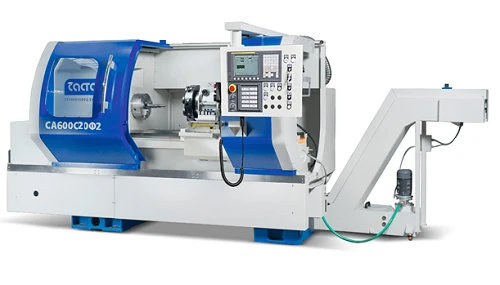

Lathe with OSU CA600C20F2

CNC Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

- Lathes with OSU (Operative Control System) - this is a new generation of equipment, which replaced the classic universal machine tools with digital indication device (DCI).
- OSU machines offer machining capabilities comparable to those of numerically controlled machine tools.
- The latest Fanuc based operational control system provides the functionality of a CNC system while maintaining operator ease of operation and manual override capability.
- Rigid design: solid cast iron bed, wide prismatic sliding guides, five precision angular contact bearings in the spindle unit, servo feed drives and ball screws instead of mechanical kinematic links - all this guarantees accuracy and reliability of the machine.
- Equipping the machine with a turret (up to 8 tools) with vertical or horizontal axis of rotation with automatic tool change (option) instead of a manual toolholder significantly expands the technological possibilities of the machine.

Technical Specifications

Type of product according to PP RF 616	Turning and screw-cutting machines (universal, with CNC, CNC)
Length	4377 mm
Height	2170 mm
Weight	3200 kg
Width (without remote control)	1616 mm
Width (with remote control)	2220 mm
The largest diameter of the workpiece, to be mounted above the bed	560 mm
The largest diameter of the workpiece, to be machined above the slide	360 mm
Movement in the X axis (transverse movement of the slide)	278 mm
Z-axis travel (longitudinal movement of the slide)	1946 mm
Maximum speed spindle speed	2800
Maximum spindle torque	783/978
Main engine power	15/18.5 kW
Spindle speed control	Stepless, 2 ranges
Diameter of the spindle bore for the bar	102 mm
Spindle end	?11
Attachment of the turret tool	VDI40
Number of tool slots	8 (4* optional)
Number of instruments	4 pc
Section of toolholder	25x25 mm
Moving the tailstock quill	200 mm
Diameter of tailstock quill	100 mm
Tailstock quill taper	Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
