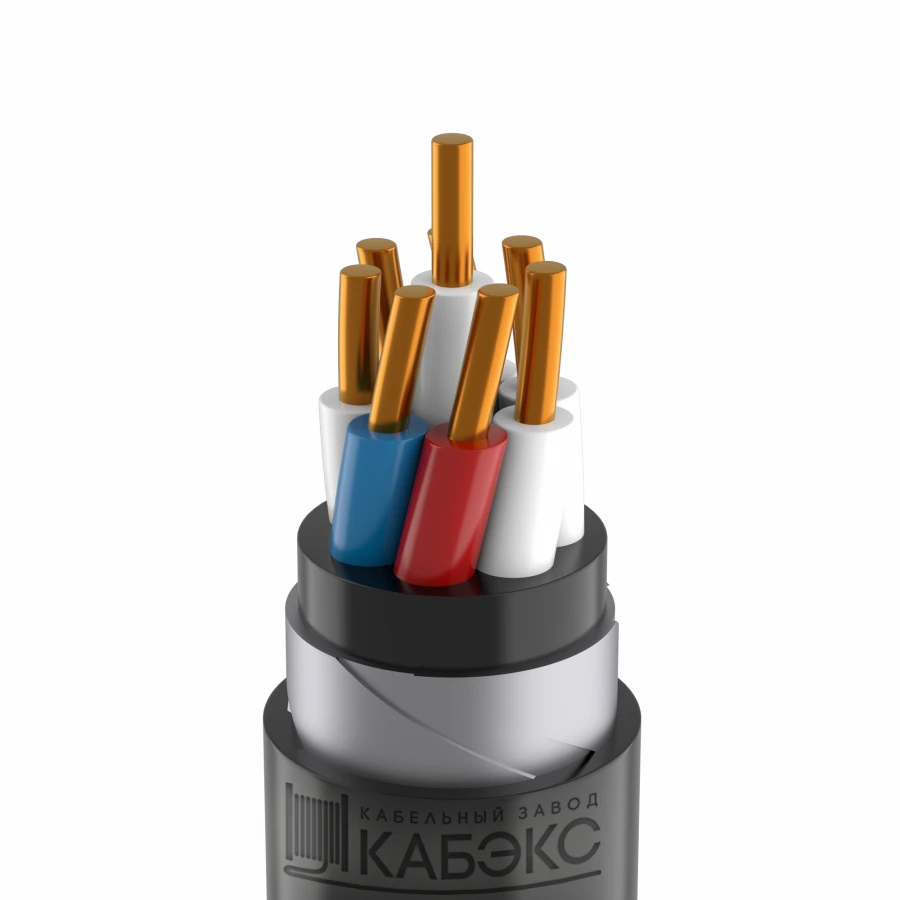

Available for ImportKVBbShvng(A)-LS Cable for Fixed Electrical Connections up to 0.66kV
Manufacturer:KABELNY ZAVOD KABEX LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
Cables are used for fixed connection to electrical devices, apparatuses, clamp assemblies of electrical switchgears with rated alternating voltage up to 0,66 kV with frequency up to 100 Hz or direct voltage up to 1 kV.
Cables are designed for laying in premises, channels, tunnels, ground (trenches), including in aggressive environment and in places exposed to stray currents, if the cable is not subjected to significant tensile forces. Can be laid in the open air.
Cables are designed for laying in premises, channels, tunnels, ground (trenches), including in aggressive environment and in places exposed to stray currents, if the cable is not subjected to significant tensile forces. Can be laid in the open air.
Specifications
Insulation material
polyvinyl chloride plasticate of reduced flammability with low smoke and gas emission
Number of cores
4...37 pcs
Mark
KVBBShvng(A)-LS
Core material
Copper
Climatized version
UHL and T, placement category 1 and 5
Nominal voltage
0.66 V
Sheath material
Polyvinylchloride plasticate of reduced flammability with low smoke and gas emission; Armour of two galvanised steel strips
Core cross section
1...6 mm²
Share your requirements for a quick response!
Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer
Delivery & Payment
Shipping Terms
Delivery Time
Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)
Payment Methods
