Available for ImportKnee Joint Orthopedic Apparatus for Support and Rehabilitation
Manufacturer:IPR "ORTOTIS" LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

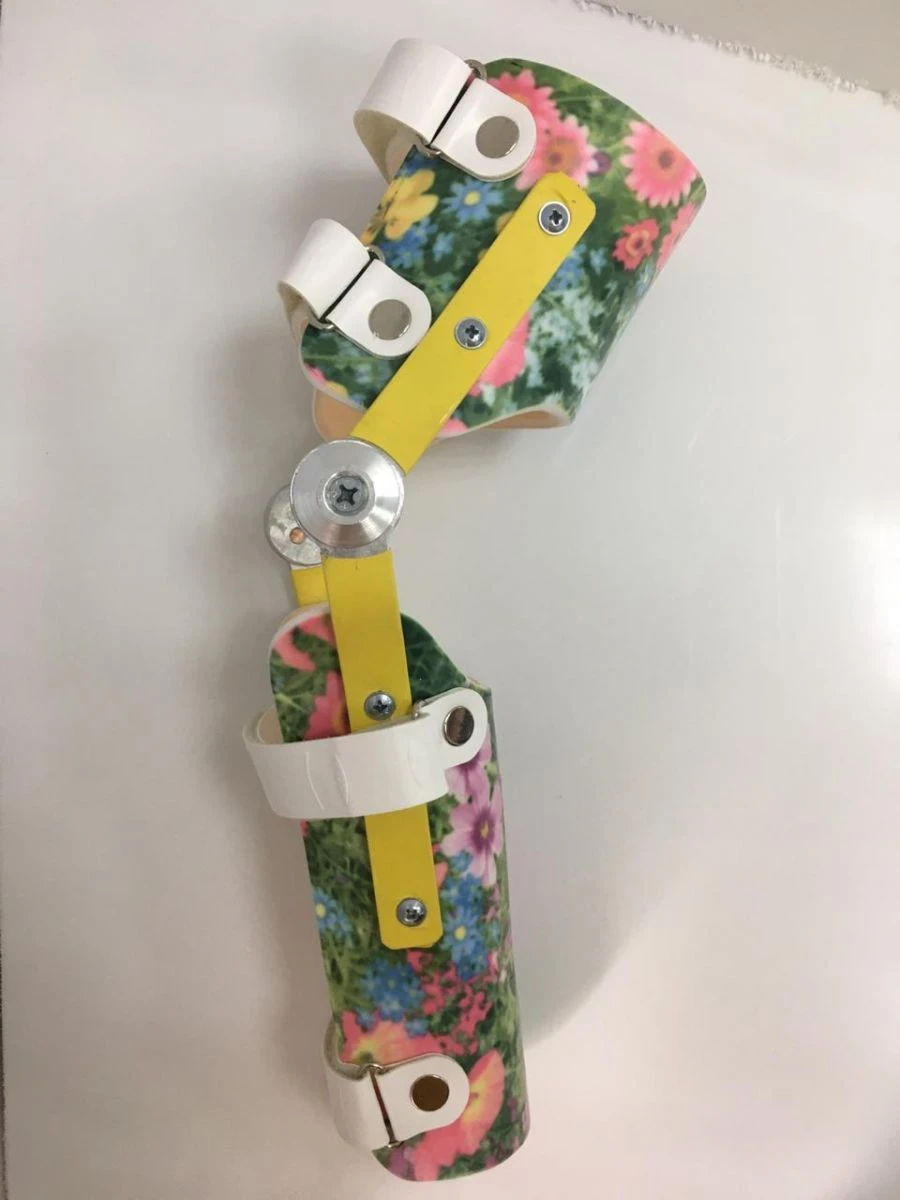

Knee joint apparatus made of foam, elastic and softening materials, units (modules) and semi-finished products, tibia and femur sleeves are made of acrylic resins or high-temperature and low-temperature thermoplastic (the type of material used depends on the individual characteristics of the patient), with or without lock (according to the indications) in the knee joint, made individually, according to casts, permanent.
Specifications
Axis displacement in unicondylar knee assembly without locking
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 22 mm in nodes with load levels P3, P4, P5, P6.
Axis displacement in a locking unicondylar knee assembly
From 8 to 12 mm in nodes with load levels P1, P2 and not more than 20 mm in nodes with load levels P3, P4, P5, P6.
Angular movement of the splint foot in the sagittal plane from the zero position in the knee assembly
95° to 110°
Level of load on apparatus units
P1 - 25 kg, P2 - 45 kg, P3 - 60 kg, P4 - 80 kg, P5 - 100 kg, P6 - 125 kg
Completeness
Conforms to process documentation and order conditions
Material
Basic materials - sheets of polyolefin types PE, Foam materials (thermo-formed) are used as a softening layer; Unified assemblies made of metals.
