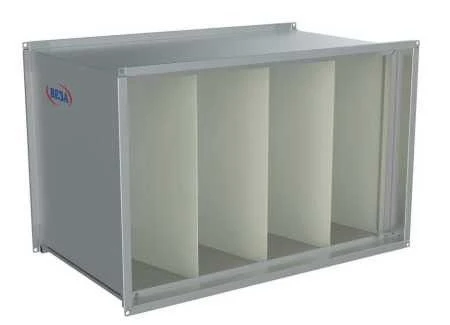

Kanal-FKP channel filter

The casing of the duct filter has a box construction made of galvanised steel. For easy maintenance and replacement of the filter cassette, the housing is equipped with a removable lid.
The filter cassette is installed in the housing as standard or can be ordered separately for replacement during operation. The cassette housing is made of galvanised steel or plastic profile. The filter insert has a flat panel cassette (G4) or a pocket type cassette (G4, F5 - F9) made of synthetic material. As standard, the filters are equipped with cassettes of purification class G4 to F9. On additional request filters can be equipped with cassettes of other purification classes.
The duct filters are mounted independently of the spatial orientation.
When installed in a vertical position, the air flow through the filter cross-section must move in the direction from top to bottom.
NOTE:
Operation of the duct ventilation system without a filter or with an extremely dirty filter...
