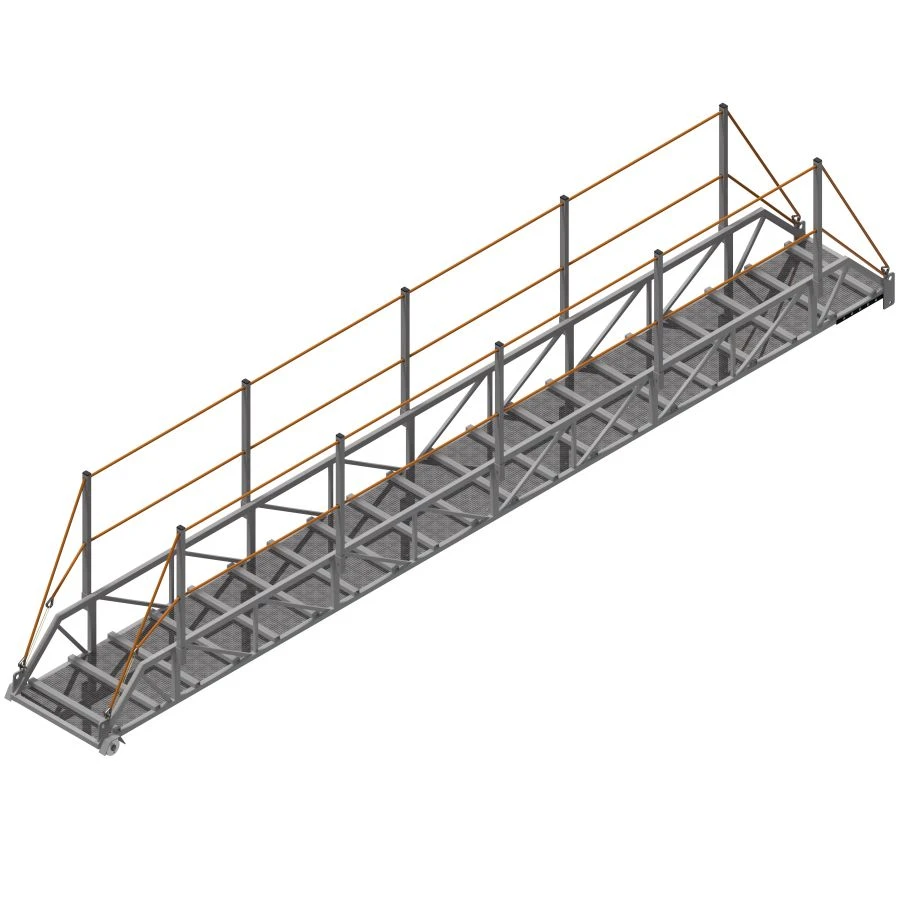

ISO Compliant Gangway for Safe Ship Access - Model TS-ISO-6-0.77

The gangways are designed to supply vessels, to provide safe human access from the shore to the vessel and back. Maximum permissible number of people who can be on the gangway at the same time is 13 (thirteen) people. The length of the gangway is 6 metres, the width "in the light" is 0.6 metres, the height of the barrier is not less than 1.1 metres.

The angle of inclination of the gangway to the horizon during operation is not more than 30 degrees. Operating temperature of the gangway is from -40°C to +55°C. The gangways are made of aluminium profiles of rectangular cross-section and corrugated aluminium sheet of alloys AD31T1, AMg (GOST 4784-97) according to TU 28.

9939-007-56273945-2019, approved by RS letter No. 120-002-1122f/r-369245 dated 16.12. 2019.

The warranty period is twelve (12) months from the date of shipment. The total service life of the gangway is not less than 10 years, provided that it is operated correctly and defective parts are replaced in a timely manner.
