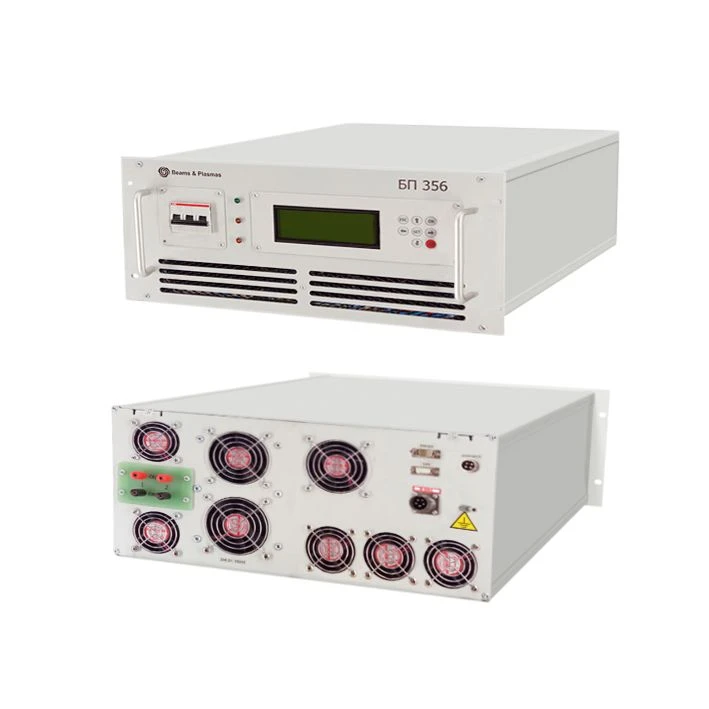

Ion Source Power Supply with Control System (6 kW, Dual Channel 3 kW per Channel)

Brand: Beams & Plasmas

$3,000 - $9,600 USD

MOQ: 1 pieces

Key Features

Assignment: Supply of regulated DC voltage power for ion sources up to 3 KW used in vacuum coating systems.

Dustproof: Yes - The unit housing is made of metal and has no exposed live parts

Front panel control: Got it

Type of construction: Built-in, Stationary

Supplier Information

LVT+ LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The unit is designed for regulated DC voltage power supply of ion sources with power up to 3 KW used in vacuum coating plants.

The power supply unit is equipped with:
- RS-485 interface for communication with a computer
- Modbus RTU control
- voltage stabilisation mode with current limitation
- output voltage converter
- controller with display and controls
- gas supply control and monitoring system
- two channels for control: two PWGs and/or two shut-off valves in the vacuum unit

Operation manual is available on request: LCMK.356.00.00.00.00-01 RE ION SOURCE POWER SUPPLY UNIT BP 356
It is allowed to deliver the device as a part of the installation without packing.
On request, standard modernisation of the device by the manufacturer is possible.

Specifications

Assignment

Supply of regulated DC voltage power for ion sources up to 3 KW used in vacuum coating systems.

Dustproof

Yes - The unit housing is made of metal and has no exposed live parts

Front panel control

Got it

Type of construction

Built-in, Stationary

Warranty period

1 kVAr

Climatic designs

GOST 15150-69; GOST 15543-70 at normal values of climatic factors of the environment - UHL for product placement category 4.2

Power supply voltage

380 ±10% thousand m³

Voltage regulation range

1000-3000 thousand m³

Current control range

0,1-1

Power control range

100-3000 cm³

Maximum power

3 per channel l

Maximum power output

6000 cm³

Stabilization modes

Voltage, current

Output voltage polarity

Positive

Accuracy of stabilized parameter maintenance, not worse than

5 set

Number of channels

2 µGy

Interface

RS-485

Data transfer protocol

ModBus RTU

Cooling

Air

Overall dimensions, (length x width x height)

5U 485 x 485 x 221 mm

Weight, not more

20 m² living area
