Available for Import

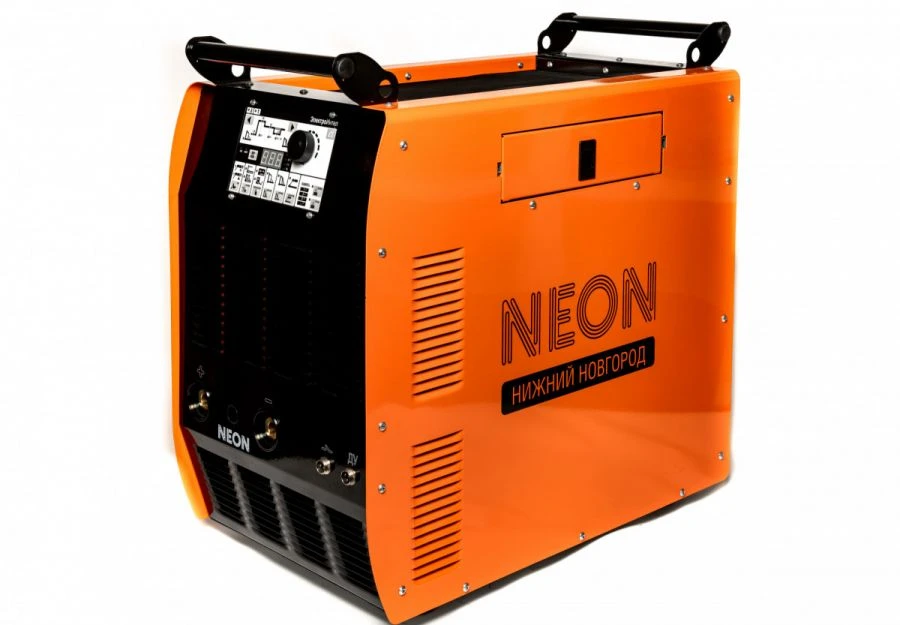

Inverter Rectifier Welding Equipment NEON Series VD-603 for Arc Welding

Electric Welding Machines

Manufacturer: ELECTRO INTEL OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Designed for air-arc gouging and manual arc welding of carbon, low-alloy, stainless steel, as well as non-ferrous metals with piece electrodes of appropriate types and grades (MMA-welding). Presence of adjustable functions "Reduction of no-load voltage", "Anti-jamming", "Arc force" and "Volt-ampere characteristic slope" considerably facilitates the welding process, and confident operation at low voltage and high load duration guarantee quality and stability of the welding process. Automatic control of the cooling fan reduces dust ingress into the welding machine, which increases reliability. The machine has the possibility of connecting a remote control. Ideal for applications in mechanical engineering, construction, shipbuilding, pipelaying and in environments with high safety requirements. The device can be certified by "NAKS".

Specifications

Type of product according to PP RF 616

Rectifier for manual arc and mechanized submerged arc and shielded gas welding (including high-frequency)

Minimum welding current

20 A

Operating voltage

360...440 V

Power

30 kW

Maximum power consumption, kW

No-load voltage

75 V

Maximum welding current

600 A

Type of welding current

permanent

Frequency of supply voltage

50...60

Semi-automatic welding

argon-arc welding

Manual arc welding

Armoured glass

AC mains supply voltage

360...440 V

Mains frequency

50...60

Load Duration (LL)

70 %

Weight

48 kg

Type

Mark

"NEON"

Welding current range

20...600 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
