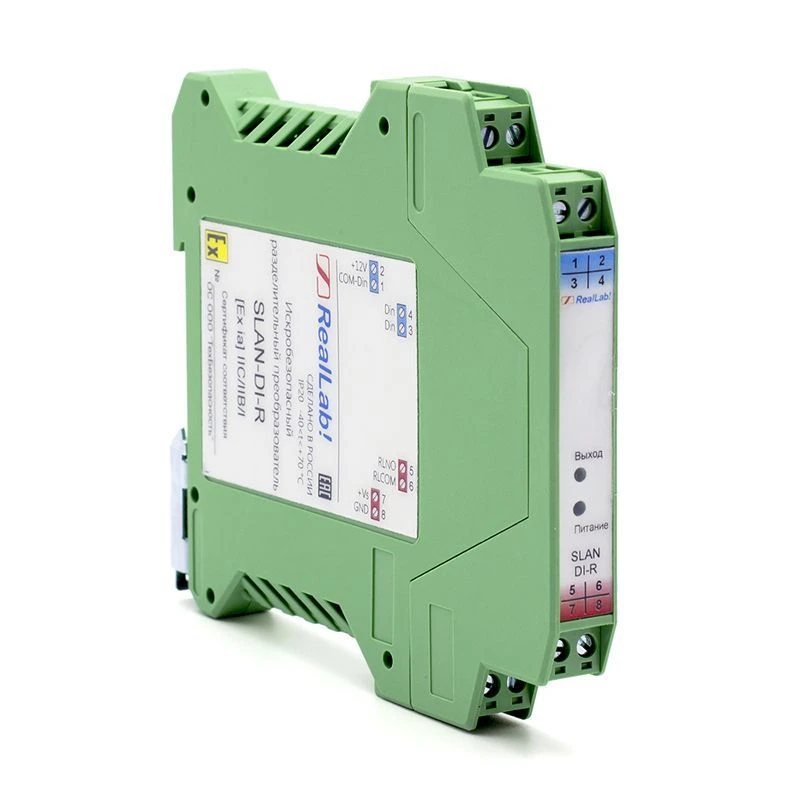

Intrinsically Safe Signal Isolator SLAN-DI-R for Safe Signal Transmission

Purpose: intrinsically safe transmission of discrete signals from hazardous area to explosion-proof area Intrinsic barrier type: active with galvanic isolation Signal type/sensor: "discrete logic" or "dry contact". Number of sensors to be connected: 1 Signal parameters or connection method: 0-12 V Number of output channels: 1 Parameters of outputs "open drain": inward current not more than 0,75 A at external source voltage not more than 35 V Galvanic isolation: input and output isolation - 2500 V Types of protection: against incorrect polarity connection of the power supply source Power supply voltage: 10-30 V Power consumption: not more than 1 W Explosion protection marking: [Ex ia] IIC/IIB/I Operating temperature range: -40°C to +70°C Average MTBF: 120 000 hrs. Average service life, not less than: 12 years Overall dimensions (HxWxH): 99x12.6x113.6 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 18 months
