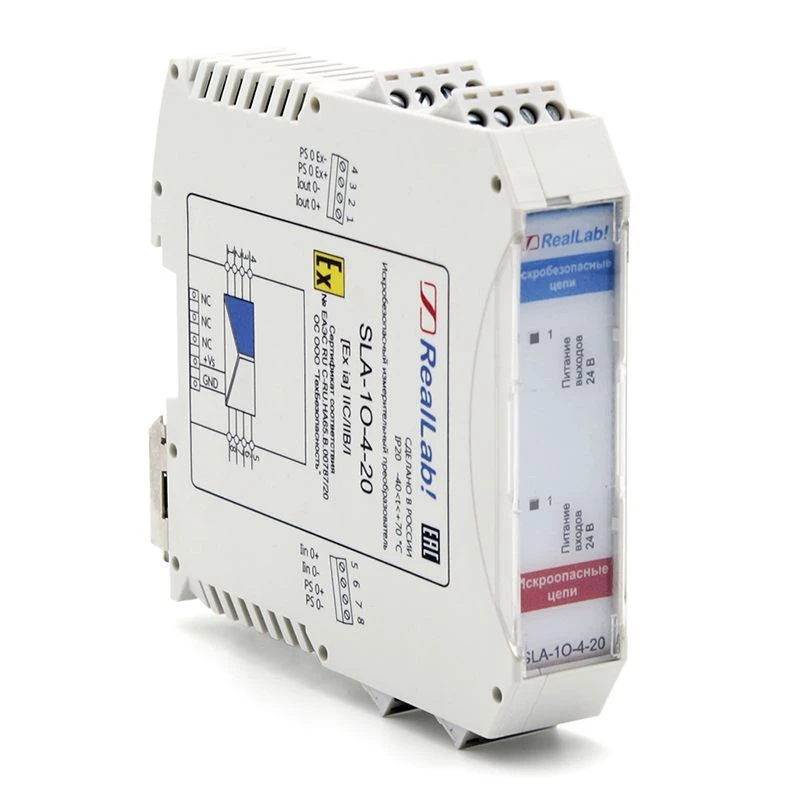

Intrinsically Safe Signal Converter SLA-1O-4-20 for Safe Signal Transmission

Purpose: intrinsically safe transmission of current signal from the explosion-proof zone to the explosion-proof zone Intrinsic barrier type: active with galvanic isolation Signal type: current signal 4-20 mA Number of connected devices with 4-20 mA input:1 Signal parameters or connection method: current loop Upper limit of signal variation range: 20 mA Current transfer error: max 0.1 % Supply voltage: 10-30 V Power consumption: max. 2 W Explosion protection marking: [Ex ia] IIC/IIB/I Operating temperature range: -40°C to +70°C Average MTBF: 100 000 hrs. Average service life, not less than 12 years Overall dimensions (HxWxH): 99.4x22.5x109 Mounting: on DIN-rail Degree of protection: IR20 according to GOST 14254-2015 Warranty: 18 months
