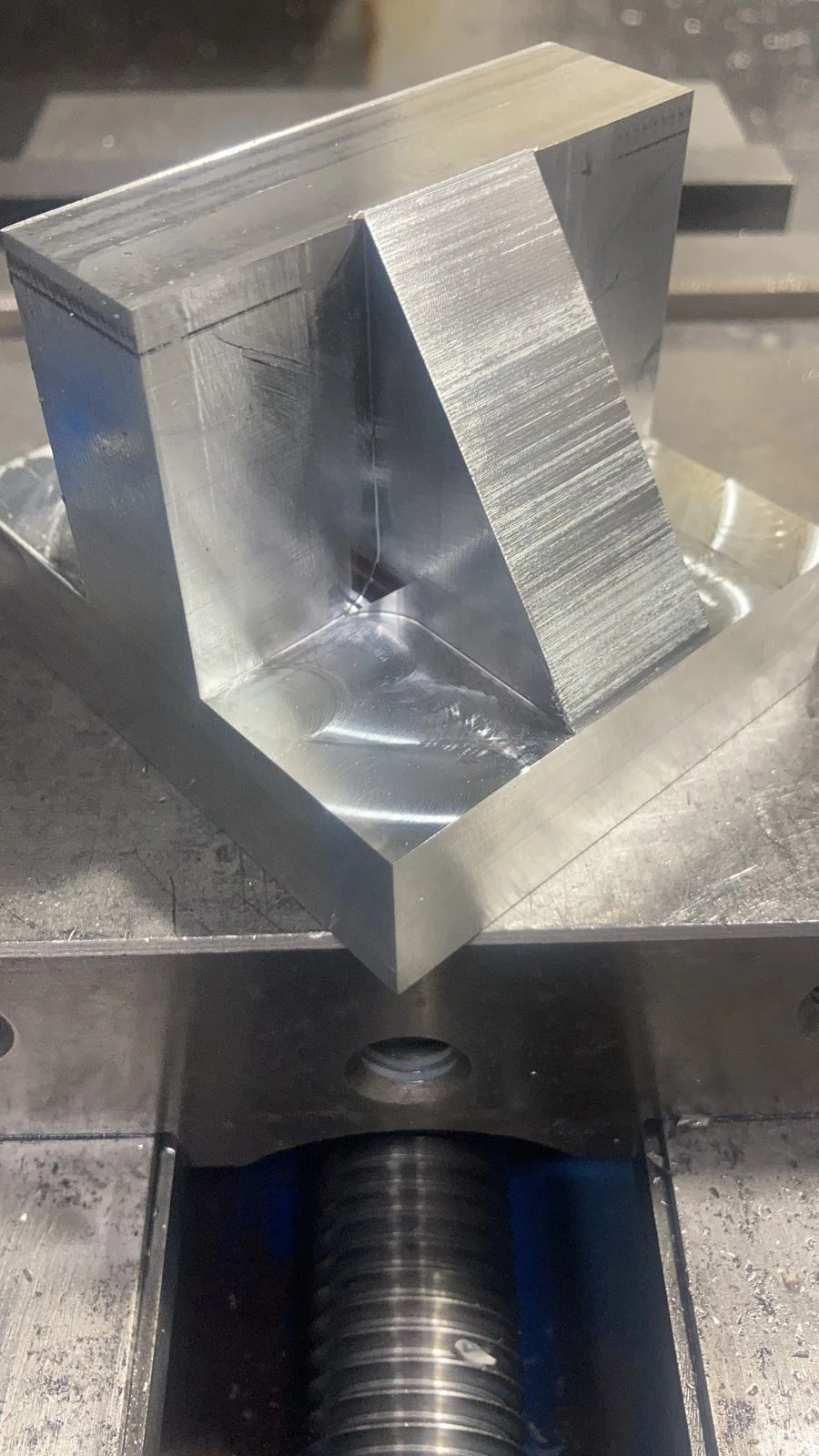

Interdisciplinary Set of Complex Shape Bodies for Direct and Indirect Measurements

Interdisciplinary Set of Complex Shape Bodies for Direct and Indirect Measurements

$9 - $36 USD

MOQ: 200 sets

Key Features

Material: Aluminium, caprolon

Number of parts: 10 µGy

Dimensions, not more: 10*10*10 cm

Supplier Information

VECTOR LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The set is intended for work in interdisciplinary variant (physics, mathematics, engineering graphics, drawing). It represents 10 parts of complex constructive shape, different material, size. Works, which are provided by the methodology when using the set:1.Measurements with tools (w/c, micrometer, ruler).

Direct and indirect measurement of dimensions, volumes, density of material. Calculating the areas of angles. Determining the centres of gravity of a complex figure.

2.Comparison of the results obtained.3.Construction of projections of complex models, construction of isometrics.4.Taking parameters, working with the SI system, units of measurement. 5.Material: aluminium, plastic.
