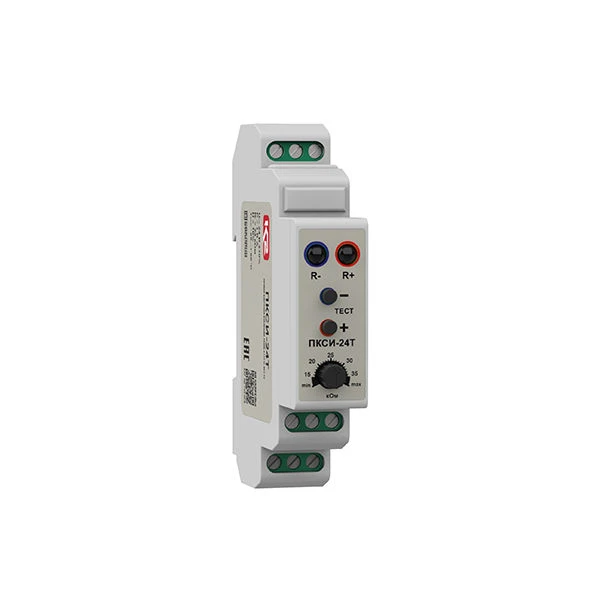

Insulation resistance monitoring device PKSI-24T, cat.no.703 024

Panel Analog Indicators

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

The device PKSI-24T, RBNM.411212.002TU are designed for continuous automatic control of insulation resistance of positive and negative busbar of 24 V DC networks with isolated neutral (IT-network) relative to the busbar PE. Visual control of decrease of insulation resistance below the set value is carried out with the help of indicators. For remote control PKCI-24T is additionally equipped with switching dry contact of remote signalling. The device is made in a plastic case of protection class IP20. The device is mounted on a 35 mm DIN-rail by means of a special latch on the back side of the housing.

Technical Specifications

Dimensions	91.5;18;69.3
Weight	0.08 kg
Operating temperature	-25...60 °C
Power consumption, max.	1
Set trigger value, Ran	15...35 ohm
Power supply voltage, Us, DC	24 V
Controlled mains voltage, Un, DC	24 V

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
