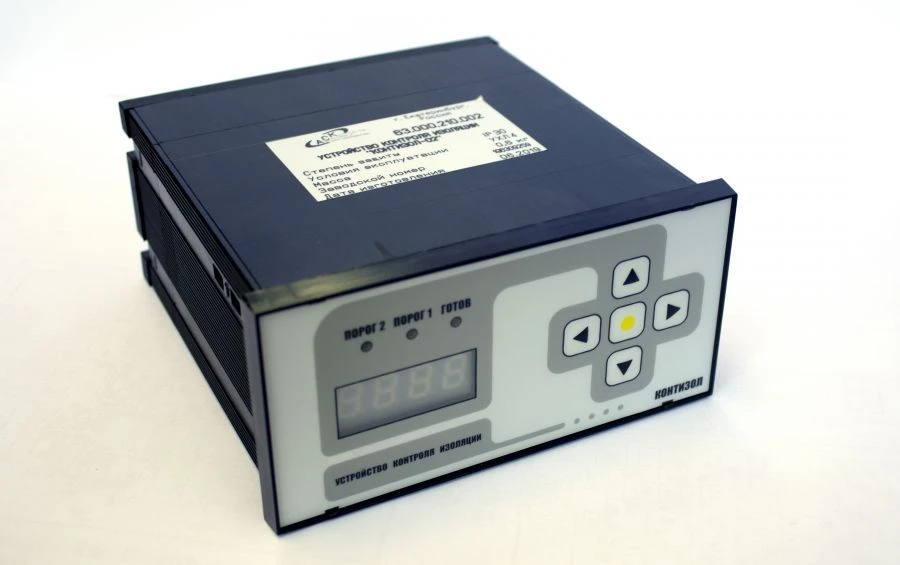

Insulation Resistance Monitoring Device "KONTIZOL" for Accurate Measurements

?CONTIZOL? is a device designed to measure the insulation resistance of power circuits relative to the ground loop in insulated DC and AC circuits. The area of application of the product is insulated DC and AC circuits requiring insulation condition monitoring.

The design of the product provides: -accessibility of inspection and tightening of fastening points of contact connections and component parts; -the possibility of removal and replacement of component parts. There are 3 signalling relays: -relay ?ALARM1? - triggers if the measured value of insulation resistance is equal or less than the threshold LEVEL1 within the set time DELAY1; <ul> <li>- relay ?ALARM2?

- triggers if the measured value of insulation resistance will be equal or less than the threshold LEVEL2 during the set time DELAY2;</li> <li>relay ?READY? is triggered if the product is energised and there are no internal malfunctions.</li> </ul>The ?HL2? glow indicator on the front panel of the product.
