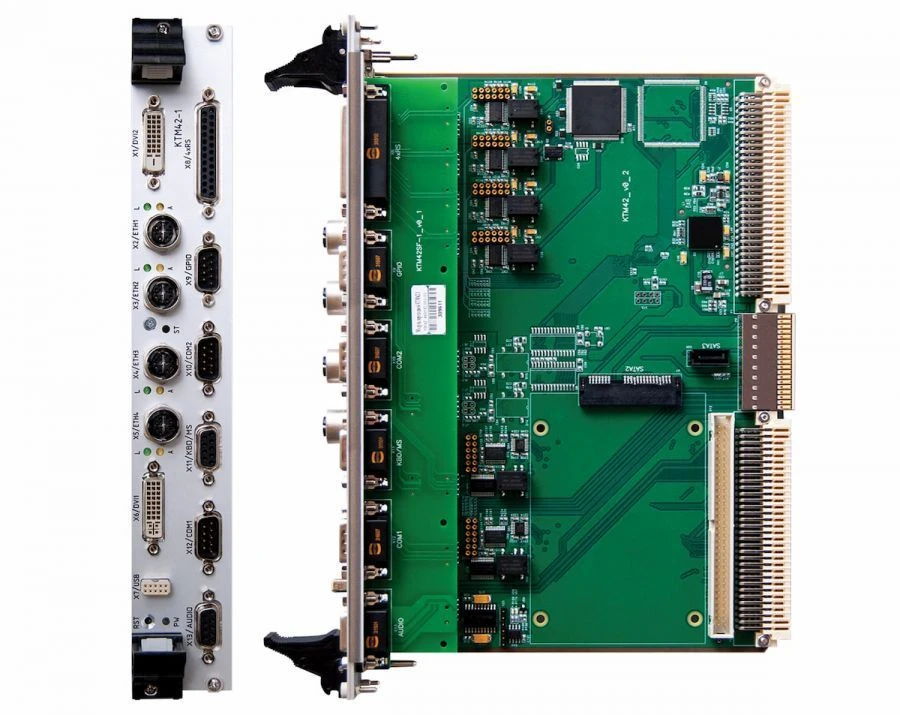

Input/Output Transition Module KTM42 for Connecting K42 Processor Modules

Computer Parts Modules

Manufacturer: KOMPONENT-ASU OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The module is designed for connection to I/O signals of interfaces coming out on the back side of processor modules K42 URAG.467444.174 (versions V and W) produced by JSC "Component-ASU" through standard connectors on the front panel. The module is a recoverable multi-channel, multifunctional product, complies with the State System of Industrial Instruments and Means of Automation (SSIA) and can be used in telemechanics, process control systems and in measuring and computing complexes. The module has a design that meets the requirements of GOST 28601.3-90 and requires placement inside other products (in VME mounts) during operation.

The manufacturer guarantees the conformity of the product quality to the requirements of the technical specifications if the customer observes the conditions and rules of storage, transport, installation and operation established by the technical specifications and operational documentation. Warranty storage period - 10 years from the date of...

Specifications

Video

"2 independent: channel 1 - DVI1: DVI interface, front panel socket DVI 24+5, combined with VGA; channel 2 - DVI2: DVI interface, front panel socket DVI 24). "

Ethernet

Up to 4 channels with 10/100/1000BaseTX interface; front panel output - M12 socket.

Temperature range

(-40…+85) °C

Serial ports

Ability to output up to two serial ports with RS232/485 interface of the K42 module to the front panel (front panel connector DSUB-09 (plug)). Opto-isolation for each port.

SATA

Ability to mount one 2.5" SATA device (SATA 7+15 connector) directly on the module board.

Additional channels

Up to 4 channels with RS232/422/485 interfaces. Front panel output (connector - DSUB-25 socket).

Audio

"Audio output stereo. Audio input stereo. Microphone mono. All AUDIO interface outputs are brought to the front panel of the module (connector - socket DSUB-09). "

GPIO

8 GPIO parallel interface data lines. Front panel output possible (DSUB-09 plug connector).

PMCIO

64 PMCIO signal output lines for the PMC module installed on the K42 module. Connection via IDC64 (plug) on the module board.

USB

2 channels of USB interface (output to front panel (Harlink socket).
