Available for Import

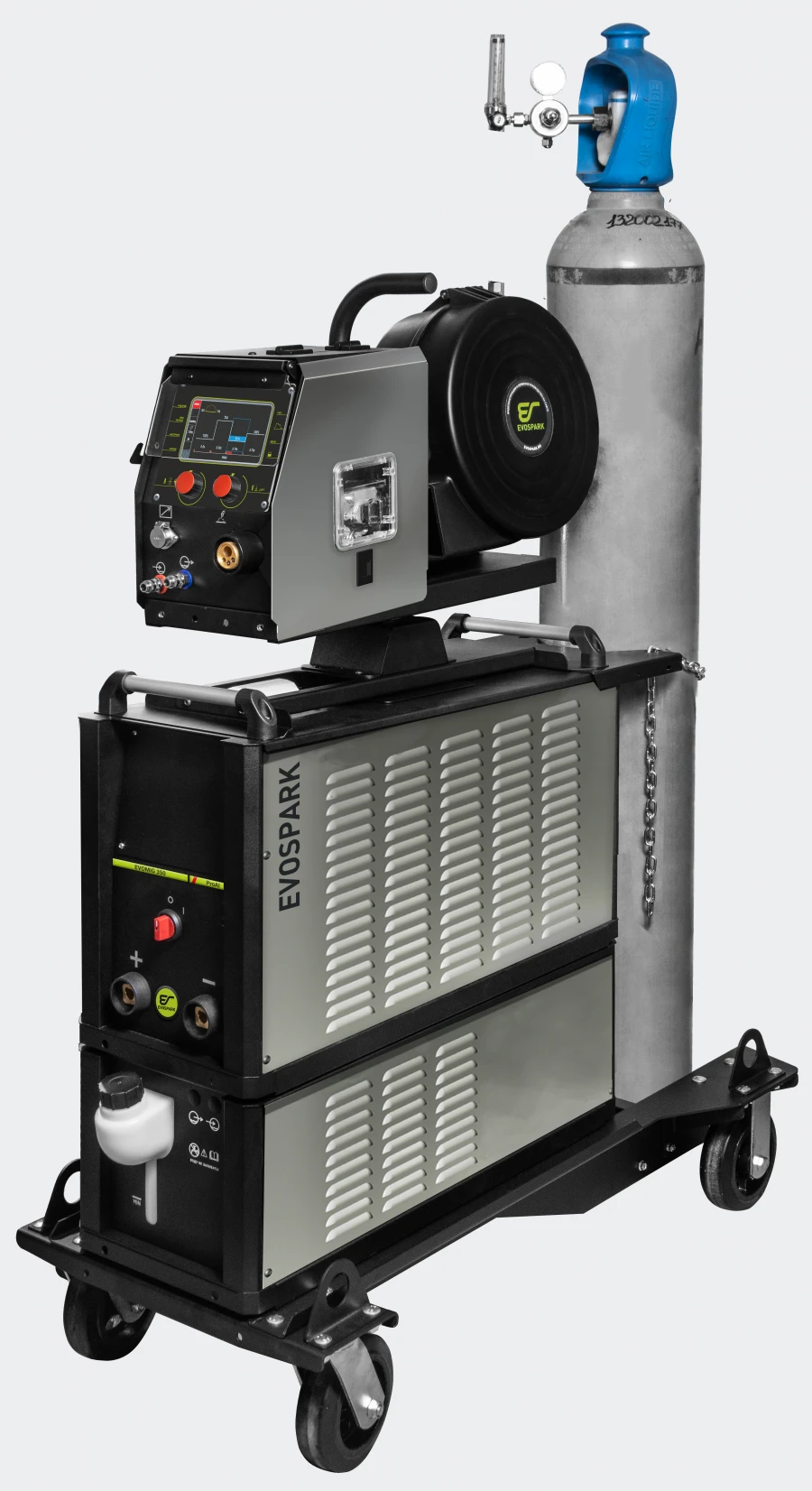

Industrial Inverter Welding Machine for MIG Welding - EVOMIG 350

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 350A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).

It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control cycle of welding arc parameters is 6.6 µs.

Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

25 A

Operating voltage

380 V

Rated welding current

350 A

Height

460 mm

No-load voltage

93 V

Maximum welding current

350 A

Type of welding current

permanent

Semi-automatic welding

25-350 ?

Maximum power consumption, kW

B1/B8 2100/900 MHz

Operating modes (continuous/pulse)

pulsed and short-pulsed

Length

740 mm

Width

300 mm

argon-arc welding

3-350 ?

Manual arc welding

20-350 ?

AC mains supply voltage

300...500 V

Mains frequency

50...60

Type of welding voltage regulation

smooth

Load Duration (LL)

100 %

Equipment

power source, remote wire feeder upp, liquid cooling unit bjo mig, cylinder cart, welding torch, grounding cable, cable package, remote parameter control system pak weld web.

Mark

evospark

Dimensions

740x300x460 mm

Weight

41 kg

Insulation class

Current intensity at 100% SP

350 A

EFFICIENCY

96 %

Cos f

0,99

Degree of protection

ip 34

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
