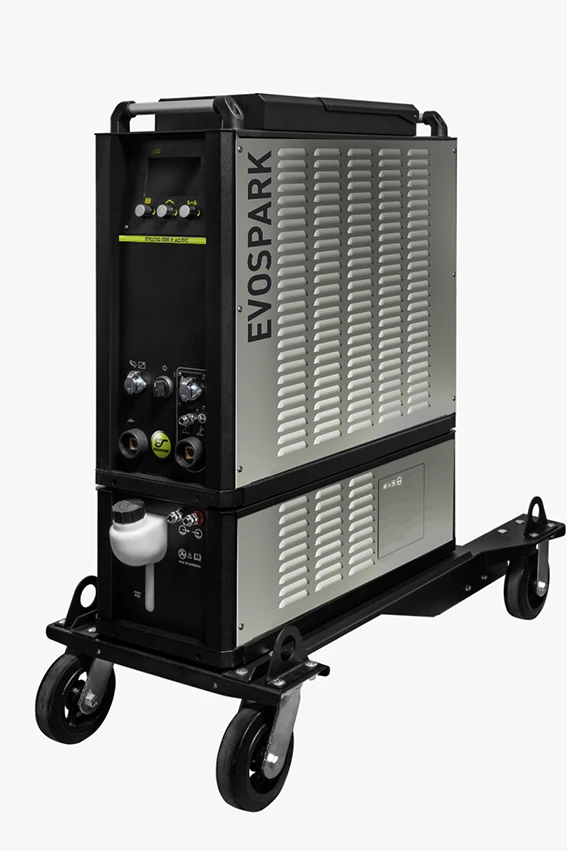

Industrial Inverter Welding Machine for Argon Arc Welding AC/DC - EVOTIG 400 P

Electric Welding Machines

Manufacturer: ZTI LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

EVOTIG 450 P DC. Direct current argon arc welding machine EVOTIG 450 P AC/DC. AC/DC argon arc welding machine

Description

Industrial inverter welding machine with software for welding parameters is designed for argon-arc welding of steels, titanium, copper-containing alloys, aluminium and alloys at currents up to 380 A inclusive. It supports all types of pulse welding, welding with high-frequency modulation, various control algorithms, contact/non-contact ignition and so on. It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40...+40° C, efficiency 96%.

The control tact of welding arc parameters is 6.6 µs. Complete with a system of remote control and documentation of parameters PAK WeldWeb..

Specifications

Type of product according to PP RF 616

Arc welding equipment;

Minimum welding current

3 A

Rated welding current

380 A

Operating voltage

380 V

Weight

60.9 kg

Mains frequency

50...60

Manual arc welding

20-350 ?

argon-arc welding

3-380 ?

No-load voltage

93 V

Maximum power consumption, kW

Length

740 mm

Width

300 mm

Dimensions

740x300x660 mm

Mark

evospark

Equipment

power source, autotig cold wire feeder, liquid cooling unit for bjo tig torch, cylinder cart, welding torch, ground cable, cable package, weld web remote parameter control system.

Load Duration (LL)

100 %

Type of welding voltage regulation

unregulated

AC mains supply voltage

300...500 V

Type of welding current

AC, DC

Maximum welding current

380 A

Height

660 mm

Operating modes (continuous/pulse)

pulsed and short-pulsed

Current intensity at 100% SP

350 A

EFFICIENCY

96 %

Cos f

0,99

Degree of protection

ip 34

Insulation class

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
