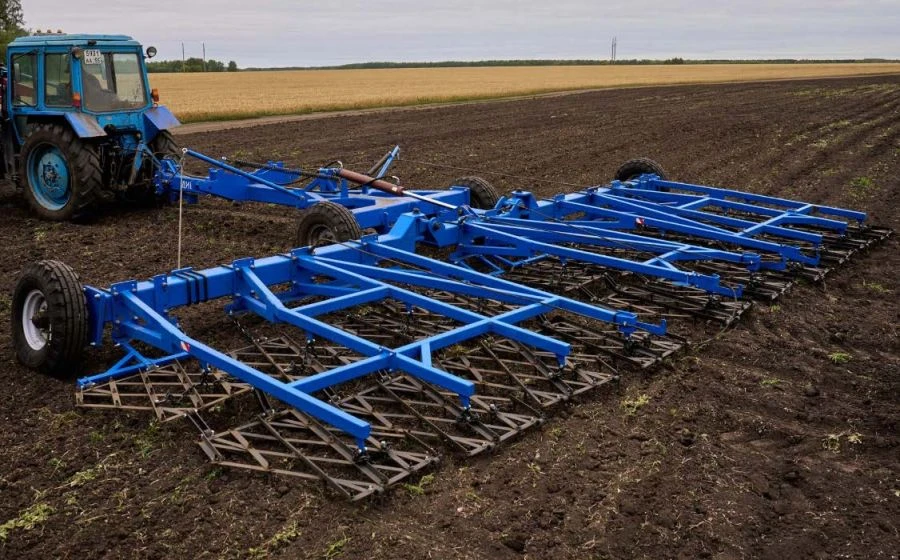

Hydraulically Controlled Harrow Coupler SBG-14-2U for Soil Processing Applications

The harrow coupling - working width 10m, 14m, 18m, 22m and 26m. is designed for soil cultivation to a depth of 8 cm with five rows of tines. Technological works on soil cultivation include: closing of moisture during early spring harrowing with simultaneous distribution of crop residues; fallow cultivation; loosening of the surface layer of soil (up to 8 cm); levelling of the surface layer of soil; destruction of weed seedlings and sprouts; incorporation of fertilizers into the soil; breaking of clods; Harrowing hitch can be used in all soil-climatic zones of Russia, except for stony ones, with soil moisture not exceeding 35%.

Soil hardness in the cultivated layer up to 0.5 MPa. Slope of the field surface not more than 10°. Stones are not allowed in the cultivated layer of soil.
