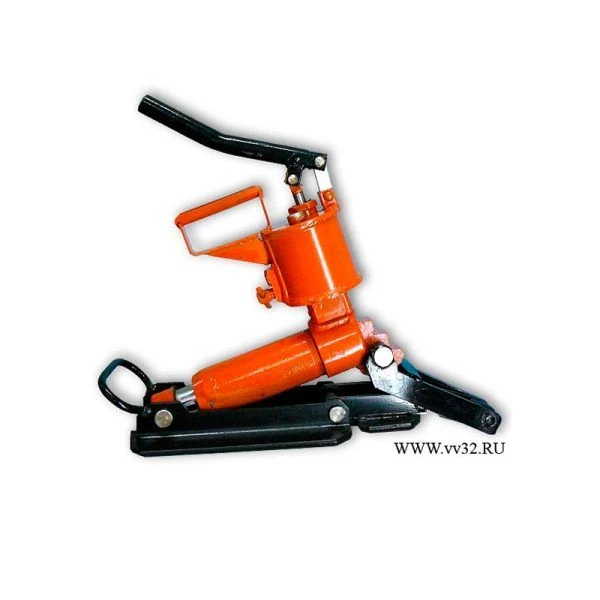

Hydraulic Straightening Machine RIG-78 for Efficient Railway Maintenance and Repairs

The hydraulic straightener RIG is designed for straightening of railway track and switches during current maintenance and repair of railway track.
Nominal force on the axis of the hydraulic cylinder, kg8000
Nominal pressure of working fluid in hydraulic cylinder, kg/cm²335
Drive type manual
Force on the handle, kg, not more than20
Working stroke of cylinder, mm100
Working fluid-industrial oil I-20A GOST 20799
Volume of filled working fluid, litre0,45
Type of climatic execution and category of placement according to GOST 15150U1
Rated operating mode is long-lasting
Overall dimensions (without handle), mm540x176x350
Weight of tucked straightener (without handle), kg17
