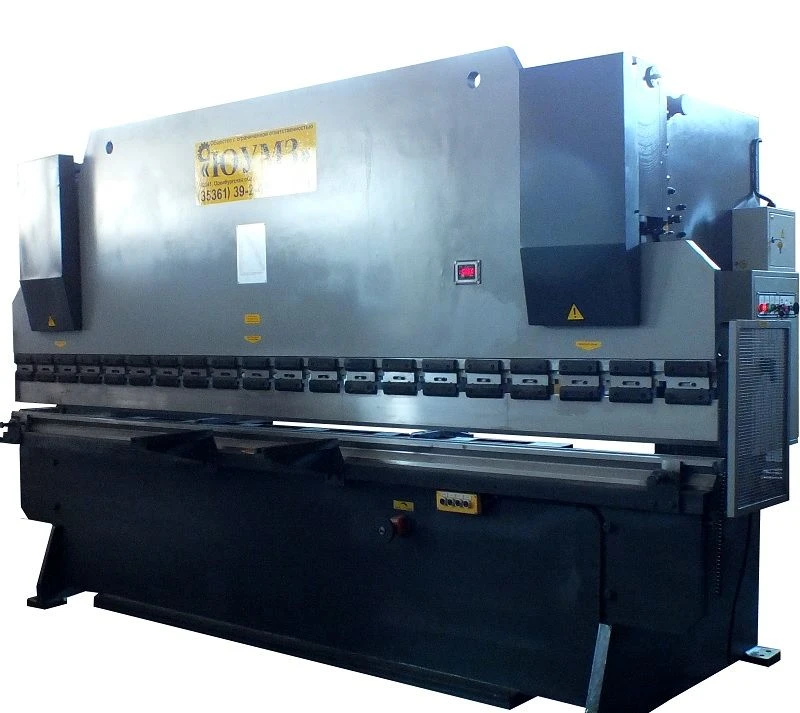

Hydraulic Press Brake 400 tons for 3200mm Sheet PLG-400.32

Available for Import

Hydraulic Press Brake 400 tons PLG-400.32 for Sheet Bending and Profiling

Hydraulic Metal Presses

Manufacturer: YUMZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The hydraulic bending press with 400 tf for 3200mm long sheets is designed for cold bending and profiling of sheet and strip metal. The construction of the bed is welded, to the front ends of the side walls are fixed guides, on which the slider moves. When installing the guides, their perpendicularity to the table surface is maintained. In the side walls of the bed are installed bearing units for the crossbar of the stabilisation mechanism. The stabilising mechanism provides reciprocating movement of the slider. The simplicity of operation of these presses allow this equipment to find a wide application in all branches of industry.

Specifications

Type of product according to PP RF 616

Hydraulic presses

Maximum movement of the rear stop

800 mm

Distance adjustment value between table and slider

250 mm

Maximum distance between table and slider

600 mm

Table width

390 mm

Distance between posts

2400 mm

Table and slider length

3200 mm

Type of construction

Hydraulic sheet forming machine

Rated press force, kN

4000

Sheet length

3200 mm
