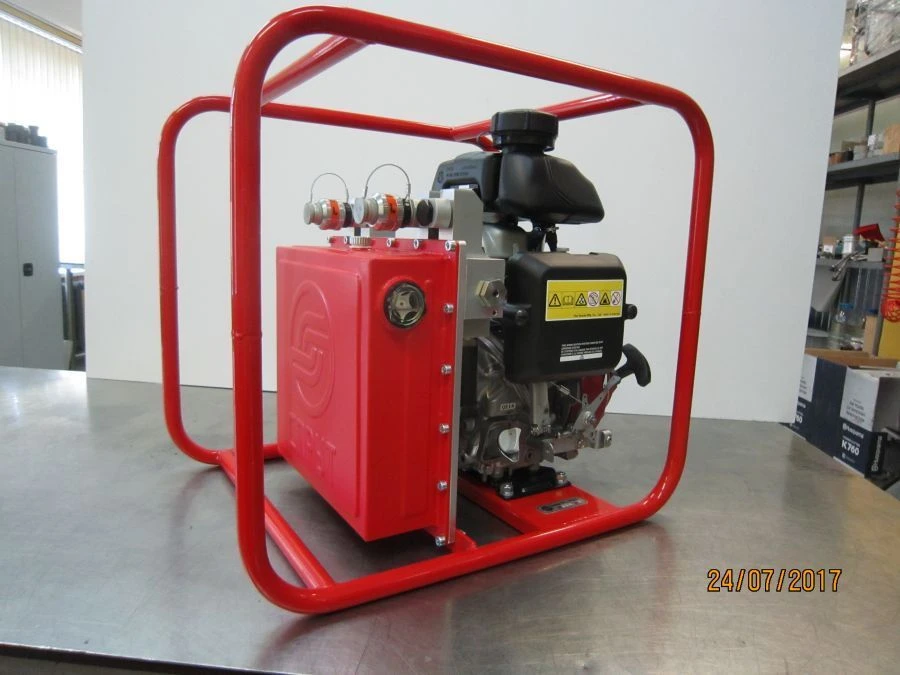

Hydraulic Power Station for Emergency Rescue Tools - SГС-2-80ДХМ-1

Designed to provide hydraulic energy for emergency rescue tools. Technical characteristics: The station provides simultaneous or separate operation of two tools. Capacity at station outlet pressure: 16-2 MPa (160-20 kgf/cm2), cm3/min, 2196 76 ± 2 MPa (760 ± 20 kgf/cm2), cm3/min, 576 Capacity is specified for one output line.

Weight, kg, 37 Overall dimensions, mm,

• - ???-2-80D??-1 (h/w/h) 500?410?530

Oil tank volume, cm3

• - at the mark "max" 5000 - 100
• at "min" mark 4500 ± 100

Drive: internal combustion engine, single-cylinder, four-stroke HONDA GX 100:

• - working volume (estimated), cm3 98.5

Fuel: petrol AI-92 or AI-93 without oil. Engine crankcase oil: mineral oil, viscosity 10W30, 10W40. Hydraulic power station can be equipped with hoses of single hose system with length of 5m, 10m, 15m (2 pcs.

each).
