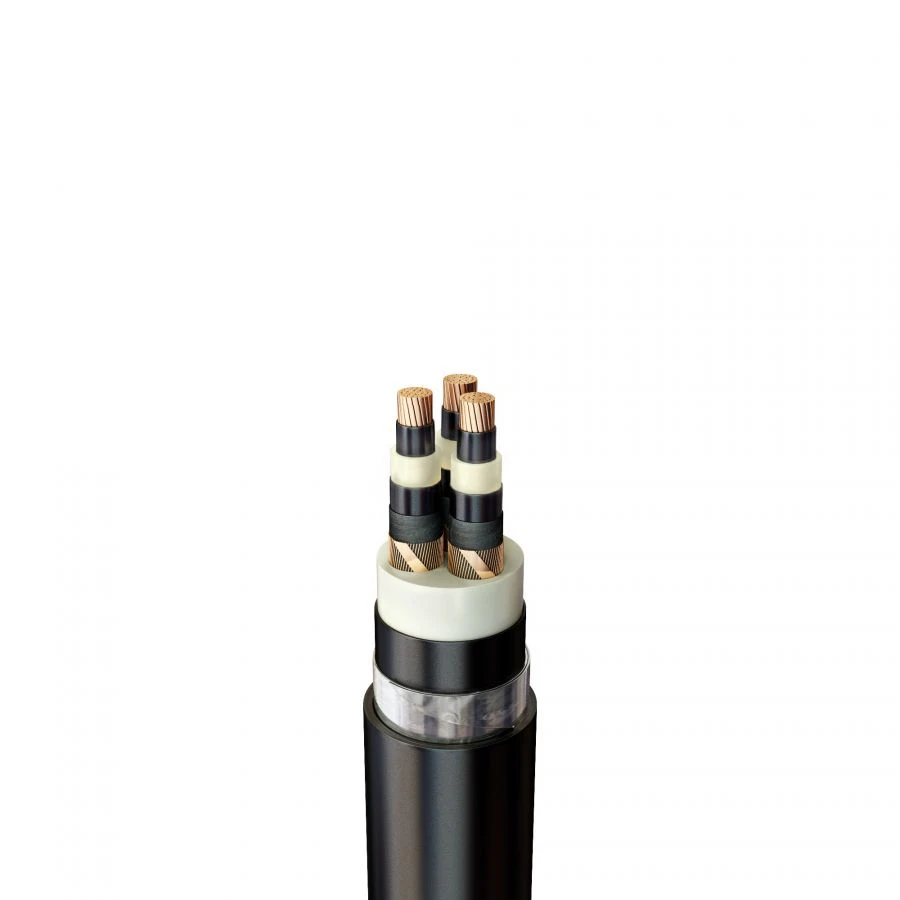

High Voltage Copper Power Cable K9RV 6-35kV with EPR Insulation

Available for Import

High Voltage Copper Power Cable K9RV 6-35kV for Energy Transmission

Copper Core Power Cables

Manufacturer: UGLICHKABEL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Power cable with insulation made of high-modular ethylene propylene rubber, designed for transmission and distribution of electric energy in stationary installations for rated alternating voltage of 3,6/6(7,2), 6/10(12), 8,7/15(17,5), 12/20(24), 18/30(36), 20,3/35(42) kV with rated frequency up to 50 Hz for networks with grounded and insulated neutral. The cable is manufactured for general industrial application and is designed for stationary laying in the ground (trenches), in the air, in closed premises, in the ground, in cable collectors for group laying, including in explosive zones when supplied to the domestic market and for export, including countries with tropical climate. Types of climatic execution of cables - ???, ?? and ?

Specifications

Number of cores

3 pcs

Mark

K9RVACPMng(A)-HF; K9RVACPMng(B)-HF; K9RVABPMng(A)-HF; K9RVABPMng(B)-HF; K9RVACBPMng(A)-HF; K9RVACBPMng(A)-HF; K9RVACPng(A)-HF; K9RVVSBPMng(A)-HF; K9RVSBPng(A)-HF; K9RVSKBPMng(A)-HF; K9RVSKBPng(A)-HF; K9RVSKPMng(A)-HF; K9RVSKPng(A)-HF; K9RVSKBPMng(A)-HF; K9

Rated AC voltage

Built-in memory card slot, support microSD/SDHC/SDXC card (up to 256GB); manual recording/alarm recording kV

Material of conductive cores

Copper

Insulation material of conductive cores

High modulus ethylene propylene rubber (HEPR)

Availability of reservations

Armoured glass

Armor type

Armor made of aluminum or aluminum alloy wires (AK); Armor made of round galvanized steel wires (SK); Armor made of aluminum or aluminum alloy bands (AB); Armor made of galvanized steel bands (SB)

Outer sheath material (if no armor)

Halogen-free composition (HG / HF)

Material of protective hose (if armor is available)

Halogen-free composition (HG / HF)

Availability of metal screen

Armoured glass

Fire hazard class

P1b.8.1.2.1.

Cable cross-sectional shape

Round

Design of conductor core(s)

Multi-wire round (mc)

Nominal cross-section of conductive cores

800 mm²

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
