High Selectivity Radio Receiver PT-100 PRM-C IYALT.464313.003

Available for Import

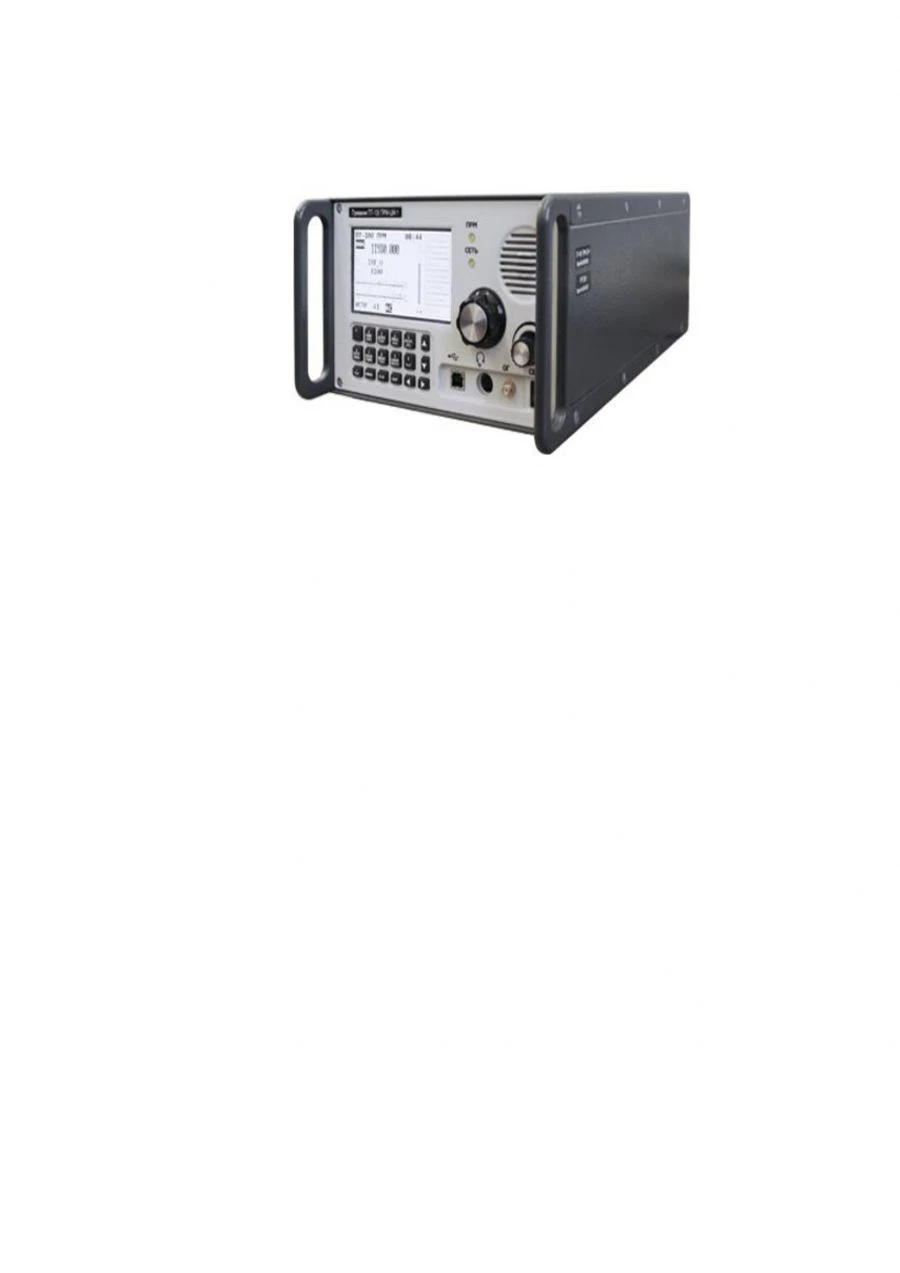

High Selectivity Radio Receiver PT-100 PRM-C for Efficient Shortwave Communication

Radio Communication Devices

Manufacturer: RIMR OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The radio receiving device PT-100 PRM-C (hereinafter referred to as the product), designed to provide reception of telephone and telegraphic messages in short-wave (SW) radio communication channels in the frequency range from 0.1 to 30 MHz. PT-100 PRM-C - version with increased selectivity, office version with the possibility of installation in a 19 inch rack. PT-100 PRM-C is a version with increased selectivity, for installation in a 19 inch rack (height 2U).

The product is operated at power supply from single-phase AC network with voltage (220 ± 22) V with frequency (50 ± 1) Hz and (or) from DC source with voltage 24 V. Limit deviations of DC voltage should be from 20.8 to 30.2 V. Remote control (RC) from an external device via Ethernet junction as well as RS-232C/RS-422/485 interfaces; Local control from the front panel.

Specifications

Frequency grid step

Rated output power of the low frequency amplifier

4 W

Receiver sensitivity, µV

0.95

Maximum extreme carrier output power, programmable

25 W

Rated output power

1 W

Number of programmable channels

500 pcs

Maximum operating temperature

70 °C

Minimum operating temperature

10 °C

Maximum value of the operating radio frequency range

Minimum value of the operating radio frequency range

Mode of operation

j3e,j7d,j7b,j2d,v7d,r3e,h3e,a1a,a3e,f1c,g1b

View

Portable

Power

0.001 W

Number of analog channels

10000 pcs

Average MTBF

10000

Service life

15 year

Communication modes

Reception of telephone and telegraphic messages

Battery type

constant current source

Overall dimensions

132x220x396

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
