High-Pressure Ramp Collector KR-01-03 for Efficient Gas Distribution

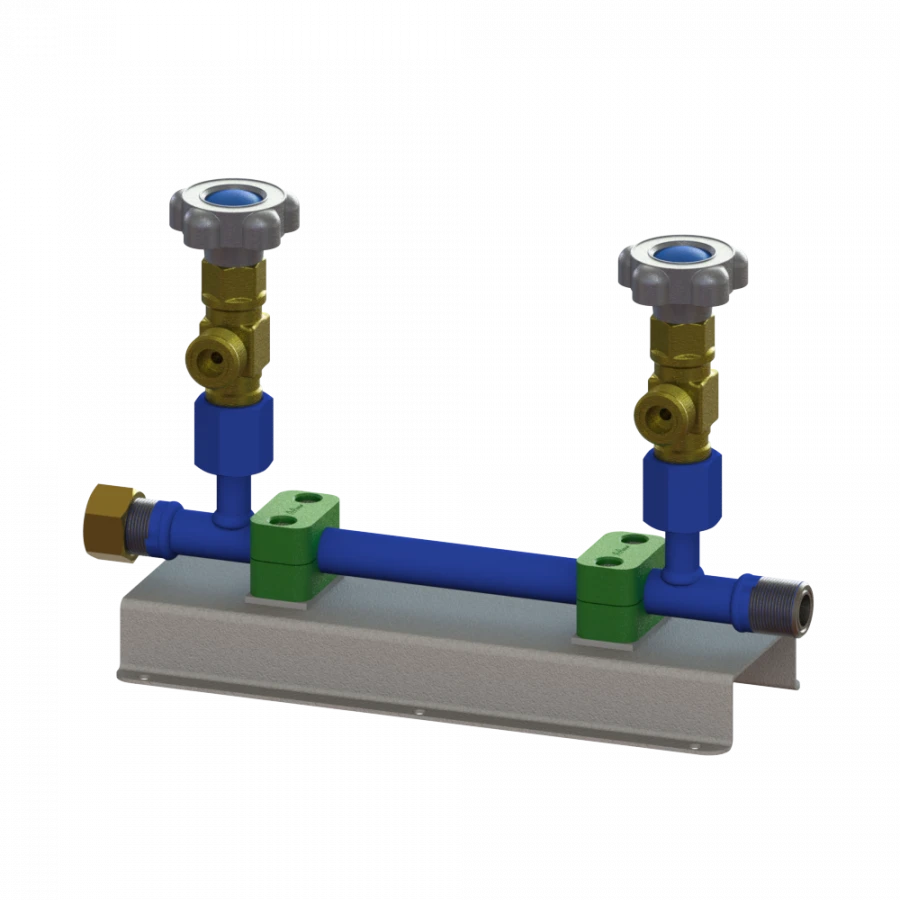

Collector ramp KR-01-03 is a high-pressure pipeline with a shut-off valve installed on it. The collector is designed to connect several cylinders and other gas sources into a common main line and centralised supply of a consumer with a small amount of gas (oxygen (including medical), argon, nitrogen, helium, carbon dioxide, hydrogen, acetylene, compressed air, propane, nitrous oxide, technical mixtures, verification mixtures, ammonia, welding mixture, methane, etc.). The number of connected sources is 2. To increase the number of connected sources, the collectors are combined with each other by an inter-ramp coil. Each collector can be equipped with: instrumentation and control systems, regulating valves, coils, spoon with chains, metal cabinet, container for easy movement, a single frame for placement on the wall, automation system of operating modes, signalling system to the operator's desk and any other solutions according to the customer's specifications.
