Fire-Resistant Armored Data Transmission Cable - KPGSKng(A)-FRHF

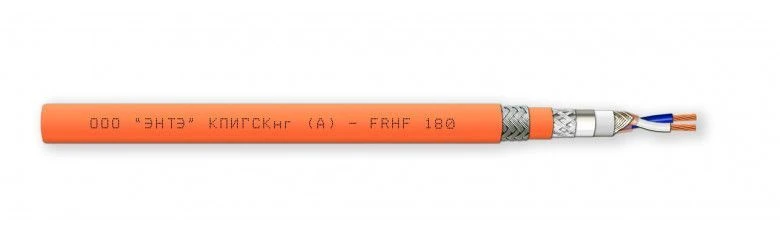

High-Flex Fire-Resistant Armored Cable for Data Transmission - KPGSKng(A)-FRHF

Manufacturer:ENTE LLC
Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Cable of increased fire resistance flexible armoured for data transmission systems with twisted pair of insulated silicon-organic rubber copper multi-wire conductive cores with diameter from 0,78 to 2,01 mm with number of pairs from 1 to 4, with additional barrier in the form of winding "eight" polyimide film in twisted pair, with additional thermal barrier over the core in the form of winding of mica-containing tape, with a belt insulation of polymer composition containing no halogens, with a screen of laminated aluminium foil with a metallic layer outwards and a braid of tinned copper wires, with a sheath and protective hose of polymer composition containing no halogens, with armour in the form of a braid of galvanized steel wires, for rated voltage up to 300 V inclusive AC frequency 50 Hz, for single and group laying.

Specifications

Working capacity
6500000000
Wave impedance
120 ohm
Attenuation factor
70
Test voltage between conductors
7 kV
Electrical resistance of core insulation
300 ohm
