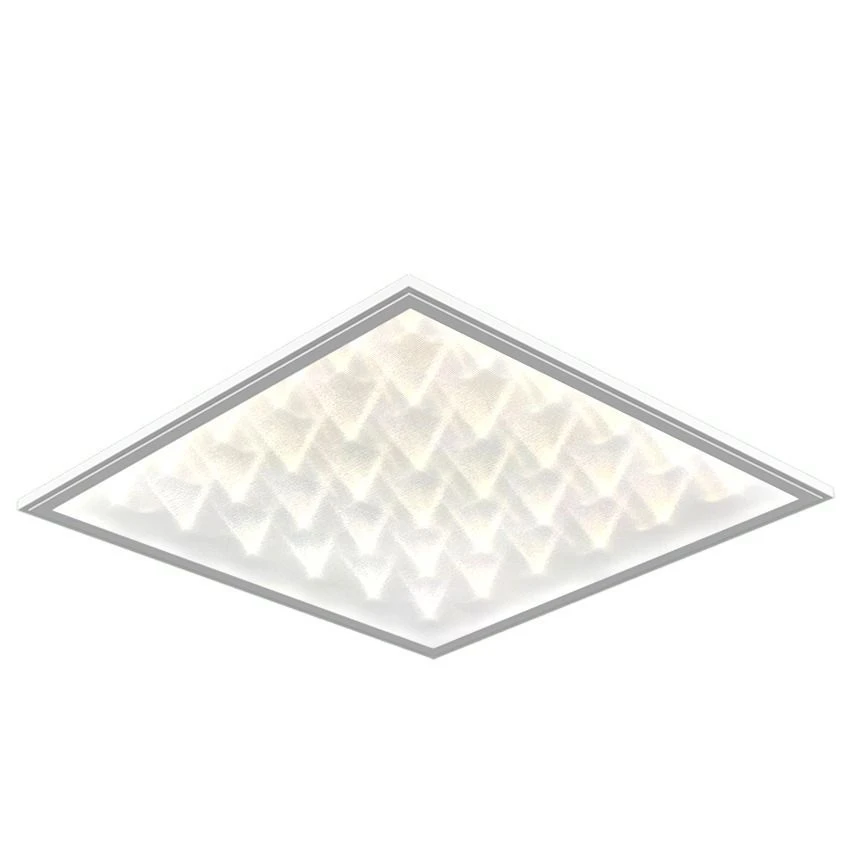

High Armstrong LED Light Fixture 20-100W

Available for Import

High Armstrong LED Light Fixture for High Ceilings and Accent Lighting

LED Ceiling & Wall Lights

Manufacturer: DIOLIGHT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Series HIGH Armstrong - LED luminaires of modular type for lighting objects with high ceiling systems Armstrong, Grilliato, as well as lighting shops, where you need accent lighting retail rows. By default they are equipped with LEDs of cold white luminescence (5000K), on customer's request LEDs of neutral-white or warm white luminescence can be installed. When developing a series of luminaires was applied technology of heat dissipation, which allowed to raise the efficiency of lighting devices as a whole (taking into account all possible losses) up to 160 lm / W. Luminaires with discrete adjustment of the angle of inclination of the luminaire, which allows optimal targeting of the luminaire. To create the necessary light environment luminaires can be equipped with secondary optics, or a reflector, eliminating the effect of glare, which allows you to form the necessary consumer distribution of light flux..

Specifications

Type of lamps (LED, incandescent, fluorescent)

ice

Type of supply current

Upper operating temperature value

SBVVBG °C

IK code

Type of explosion protection

Type of emergency luminaire

Option

Net weight

2...10 kg

Light distribution class

Color temperature (K)

2700...5700 K

Weight

2...10 kg

Optical element material

Polycarbonate

Climatic execution (according to GOST 15150-69)

UHL1

Type of diffuser

Polycarbonate

Color rendering index (CRI)

70...90

Housing material

Aluminum

Width

587...593 mm

Length

587...593 mm

Luminous flux, lm

2000...16000 lm

Height

98 mm

Correlating color temperature (CCT)

2700...5700 K

Power consumption, W

20...100 W

PROTECTION CLASS AGAINST ELECTRIC CURRENT

Luminaire height

98 mm

Luminaire width

587...593 mm

Luminaire length

587...593 mm

Ripple factor, less than or equal to

2 %

Color rendering index (Ra), greater than or equal to

80-90

Correl. color. temp. (CPT)

2700...5700 K

Power consumption

10...100 W

Width

593 mm

Color rendering index (Ra), greater than or equal to

80...90

Color rendering index (Ra)

80...90

diffuser

Polycarbonate

Power Consumption.

10...100 W

Correl. color. temperature

2700...5700 K

Color rendering index (Ra).

80...90

Brightness limitation category

limited

Mounting type

Built-in

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
