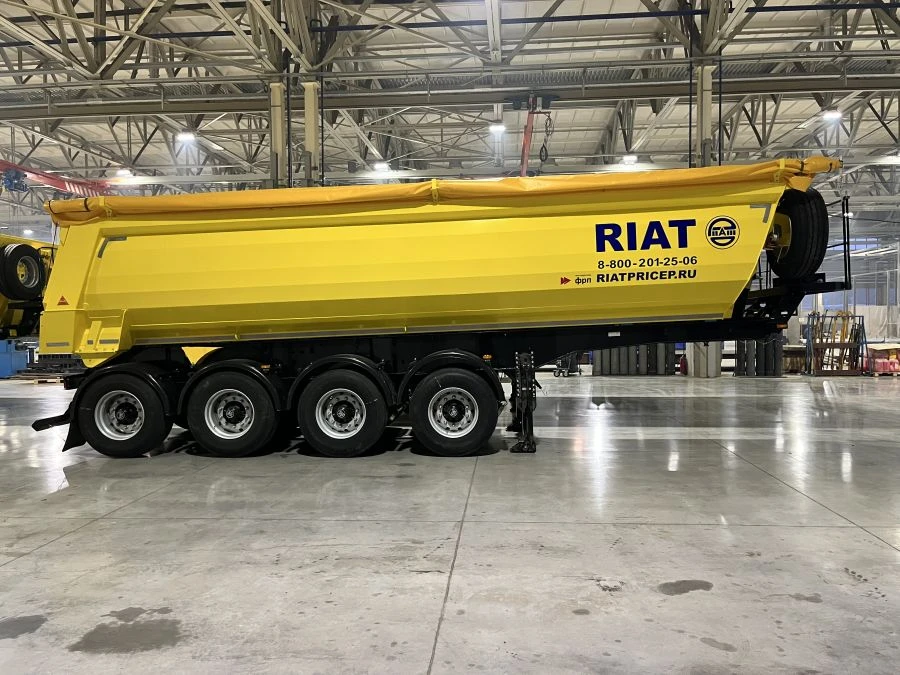

Half-Pipe Dump Trailer 924940 for Efficient Material Transport

HALF-PIPE tipping trailer. Equipment 924940-33H1. Overall dimensions of the semi-trailer (DxWxH): 10520x2550x3240 mm.

Internal dimensions of the body (DxWxH): 8960x2290x1615 mm. Cargo volume: 33 cubic metres. Mass indicators: Curb weight of the trailer: 9400 kg.

Payload: 37900 kg. Gross weight: 47300 kg. Tandem load: 11300 kg.

Bogie load: 36000 kg. TMS height: 1200/1300 mm. Unloading direction: Backwards.

Platform lift angle: 43º ... 45º. Track: 2045 mm.

The omega-shaped cross-section of the platform ensures a lower centre of gravity of the loaded semi-trailer compared to other types of HALF-PIPE cross-sections. The tipping axis of the platform on the frame is located with a slight offset from the axis of the suspension pneumatic springs attachment to the frame. This increases the stability of the semi-trailer when unloading.

Increased service life of the semitrailer metal structure due to the use of high-strength steels.
