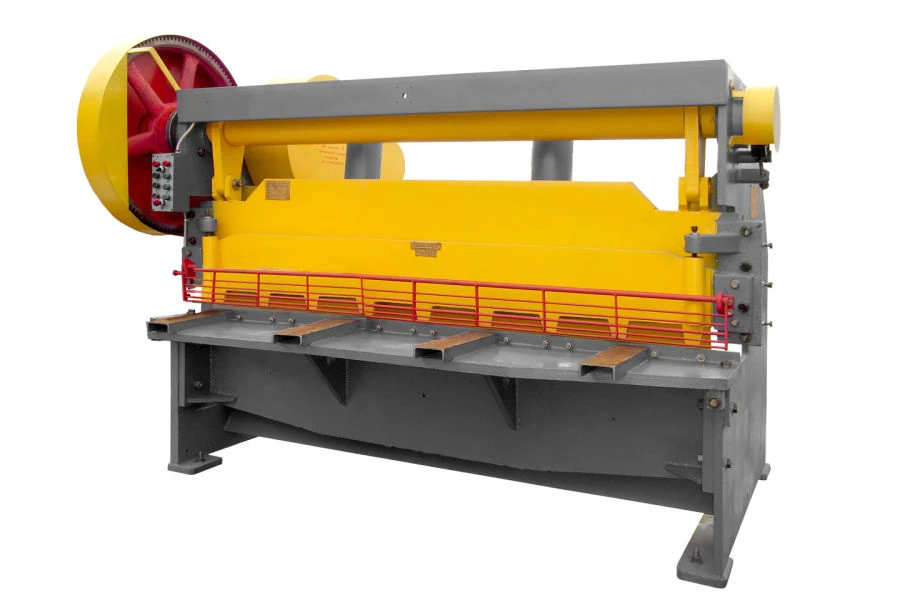

Guillotine Shears N3118 for Metal Sheet Cutting

Available for Import

Guillotine Shears N3118 for Efficient Metal Sheet Cutting

Metal Cutting Shears

Manufacturer: Promstroymash LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Crank guillotine shears H3118 with an inclined blade are designed for straight, longitudinal and transverse cutting of sheet metal with ultimate strength (tensile strength) BP = 500 MPa (50 kg/mm2). Transverse cutting of sheet metal up to 6.3 mm thick and up to 2000 mm wide is performed in one stroke of the blade. Longitudinal cutting - in case of sheet length more than 2000 mm - is made by a number of repeated cuts when the sheet is moved along the cutting line.

Specifications

Type of product according to PP RF 616

Mechanical metalworking shears

Number of knife cutting edges

4 pcs

Knife stroke

80 mm

Weight

5100 kg

Overall dimensions (DxWxH)

3000 mm

Length of sheet cut with stop

500 mm

Maximum thickness of sheets to be cut (steel in <450 Mra)

6 mm

Frequency of knife strokes, idle

Motor power

7.5 kW

Save Your Time

Share your requirements for a quick response!

Looking for

Quantity

Your mobile

Instant response in 15 minutes

Best wholesale prices guaranteed

Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
