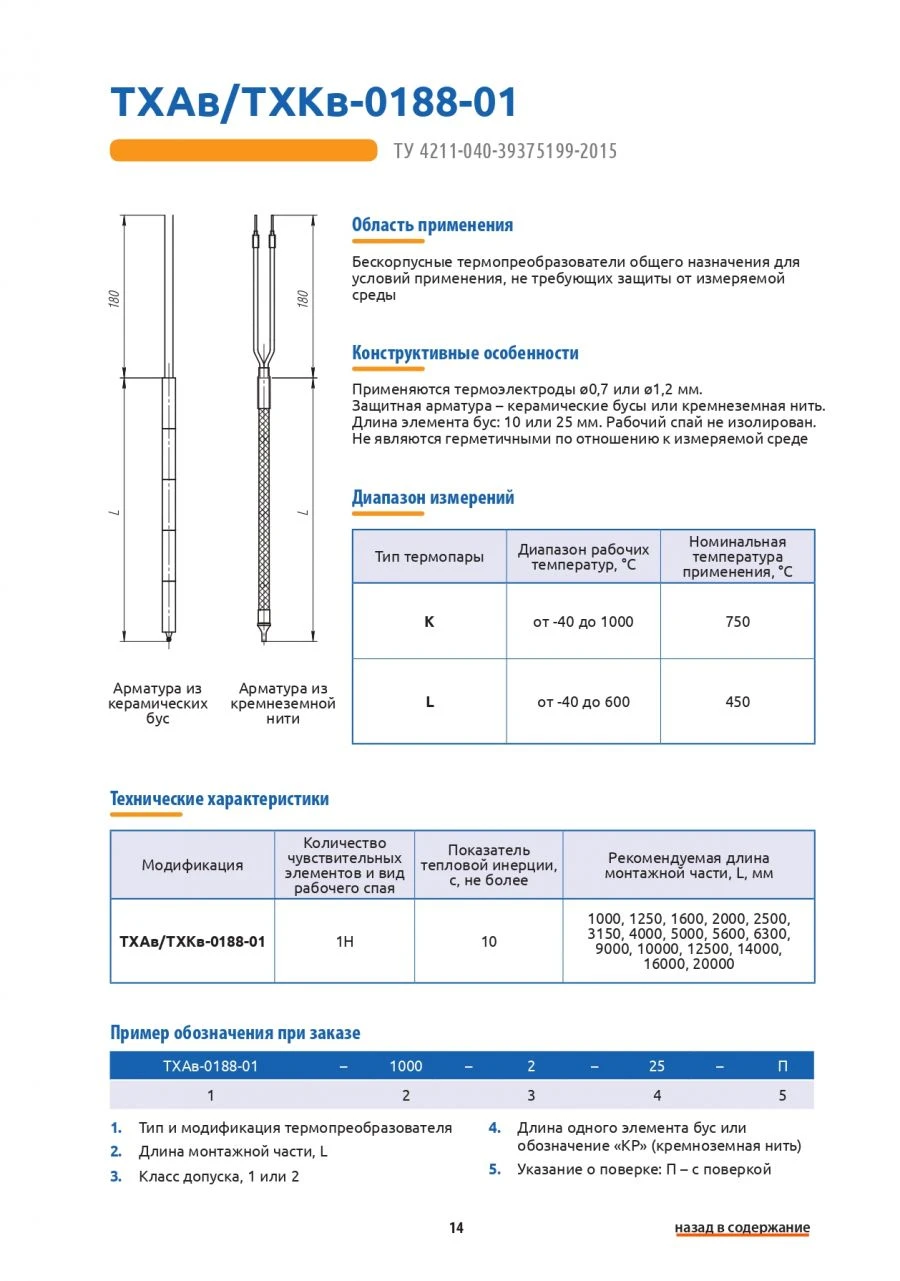

General Purpose Non-Housed Thermoelectric Converter THKv-0188-01 for Accurate Temperature Measurement

General purpose enclosureless thermal converters for conditions of application, which do not require protection from the measured medium, Design features Thermoelectrodes ø0,7 or ø1,2 mm are used. Protective armature - ceramic beads or silica thread. Bead element length: 10 or 25 mm. The working junction is not insulated. Not hermetically sealed with respect to the medium.
