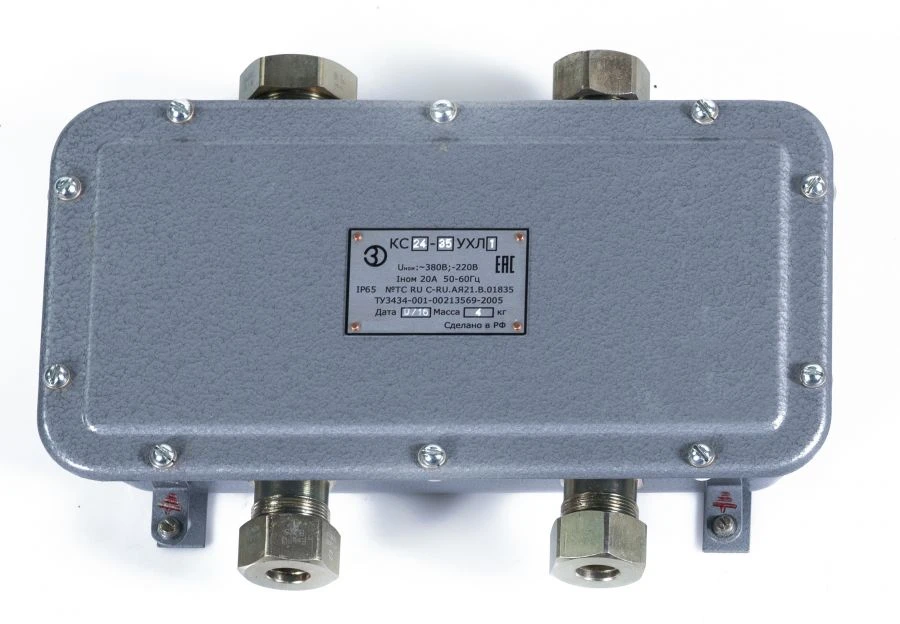

General Purpose Junction Box KС24 for Efficient Electrical Connections
Manufacturer:
VELAN OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The boxes are designed for connection and branching of secondary and power electrical circuits with voltage up to 400V AC frequency up to 60Hz and voltage up to 230V DC, performed by cables (wires) with copper and aluminium conductors with cross-section of 1.5-6 mm². Boxes are produced with glands attached. (plastic), cable glands (metal) or with plastic sealing sleeves.
Specifications
Climatic version
UHL2;UHL1
Nominal voltage
230 V
Rated current
20 A
Cross section of conductors of the cables to be supplied
1.5...6 mm²
Number of clamps
24 pcs
Sheath material
corrosion-resistant steel
Overall dimensions of the shell (HxWxH)
330x194x95 mm
Weight
3...3.5 kg
Degree of protection against external influences
IP65
Ambient temperature for UHL2
-25...40 °C
