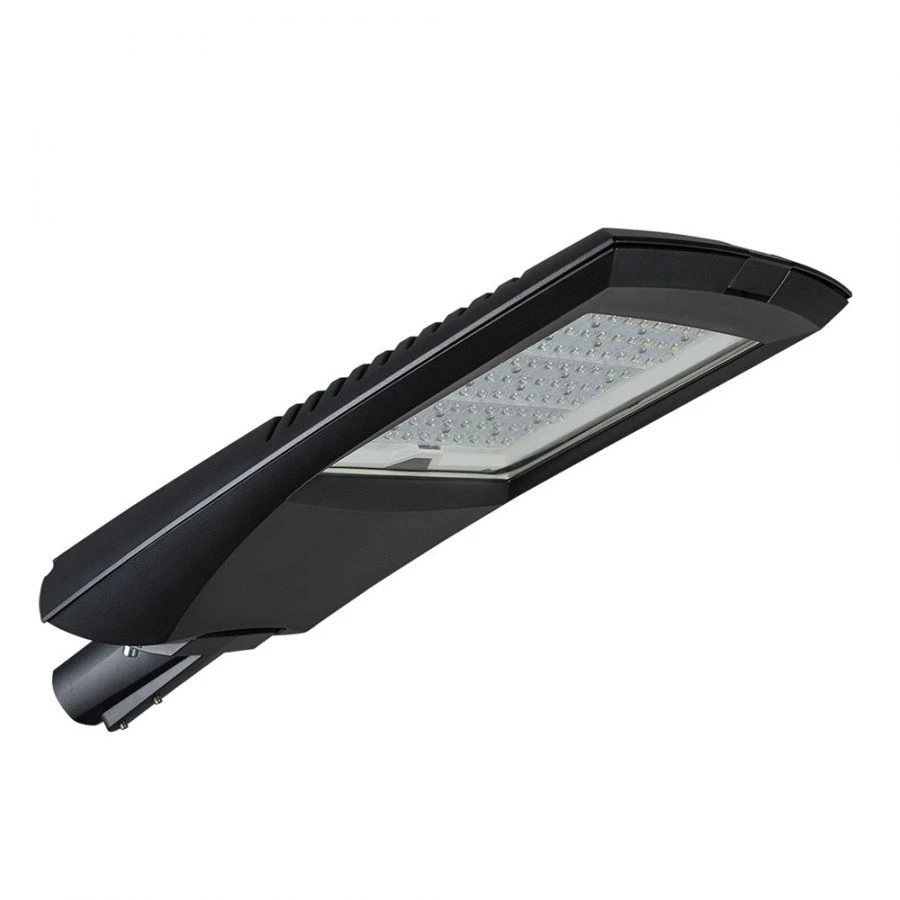

GALAD Urban M LED Outdoor Lighting Fixture - Model 52-159 for Effective Street and Area Illumination

LED Lighting Fixtures

Manufacturer: Likhoslavl Lighting Equipment Plant LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Luminaire for utilitarian outdoor lighting series GALAD Urban M LED-(52-159) are designed for lighting streets, roads, squares, boulevards, car parks, railway platforms, courtyard areas, areas in front of shopping centres, pedestrian crossings, highways, etc. The design of all series of luminaires is developed taking into account convenient maintenance during operation, they are connected without tools using easy clamping terminals and connectors. The gasket provides a high degree of protection - IP66. The luminaire housings and seating are made of aluminium, the luminaires are protected by impact-resistant powder coating. The luminaires use programmable power supplies with a programming step of 1W and have a built-in function of regulating the luminous flux of the luminaire.

Specifications

Type of product according to PP RF 616

Lighting fixtures and lighting fittings other than those included in other groupings

Mains frequency

50...60

Protection against impulse overvoltages

4...10 kV

Type of supply current

Variable

Rated supply voltage

230 V

Power consumption, W

52...159 W

Power factor

at least 0.95

IK code

Correlating color temperature (CCT)

5000 K

Net weight

no more than 11 kg

Protection class against electric current.

Color rendering index (Ra)

Length

685 mm

Width

420 mm

Height

124 mm

Housing material

Aluminum

Luminous flux, lm

7540...23000 lm

Pulsation factor

No more than 5 %

Climatic version

Type by installation location

Cantilever

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
