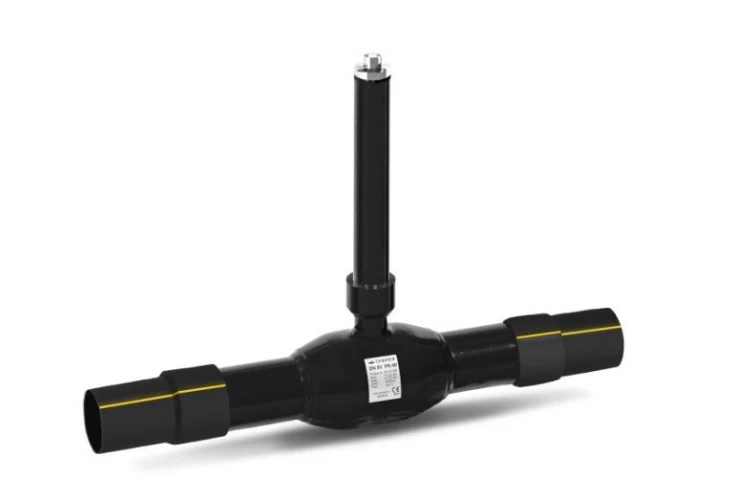

Full-Flow Ball Valve 592 with Extended Stem for PE Pipe Transition, 59220065

Available for Import

Full-Flow Ball Valve 592 for Safe Gas Transport and Connection

Manufacturer:TEMPER LLC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Available Models

Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220150.Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless laying welded, 582203 Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200 Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220080.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220100.

Full bore 592 ball valve with elongated stem with transition to PE sockets for ductless laying welded, 59220050 Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200 Standard bore ball valve 582 with extended stem for ductless laying, with reinforced insulation , 582 20 500 Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220300.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220080.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220100.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220150.Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless laying welded, 582204 Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220065.Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220200.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220050.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220025 Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220032.Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless installation welded, 582201 Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200 Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220100.Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless laying welded, 582202 Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220080.Full bore 592 ball valve with extended stem for ductless laying, with reinforced insulation , 592 20 400 Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220150.Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless laying welded, 582202 Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220125.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220025 Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220200.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220300.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220125.Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220125.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220040.Full bore 592 ball valve with elongated stem with transition to PE sockets for ductless installation welded, 59220400.Full bore 592 ball valve with extended stem for ductless installation, with reinforced insulation , 59220065.Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220200.Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200 Full bore 592 ball valve with extended stem with transition to PE sockets for ductless installation welded, 59220250.Standard bore ball valve 582 with extended stem with transition to PE sockets for ductless installation, welded, 582200 Standard bore ball valve 582 with elongated stem with transition to PE sockets for ductless installation welded, 582205 Standard bore ball valve 582 with extended stem for ductless installation, with reinforced insulation , 58220032.Full bore ball valve 592 with extended stem with transition to PE sockets for ductless installation, welded, 59220025.

Description

Connection type:

welded/welded

Working Environment:

Natural gas, liquefied petroleum gas and other gaseous media not aggressive to the materials of the valve components.

Specifications

Airtightness class

Class "A" GOST 9544-2015

Diameter

65 mm

Nominal pressure

25 MPa

Construction length

1520 mm

Connection type

with PE tubing

Aisle

complete

Flange for mounting the actuator

without flange

Execution

underground

Minimum temperature, up to

-40 °C

Maximum temperature, up to

200 °C

Service life, at least

40

Warranty period

3 year

Warranty period, cycles

10000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
