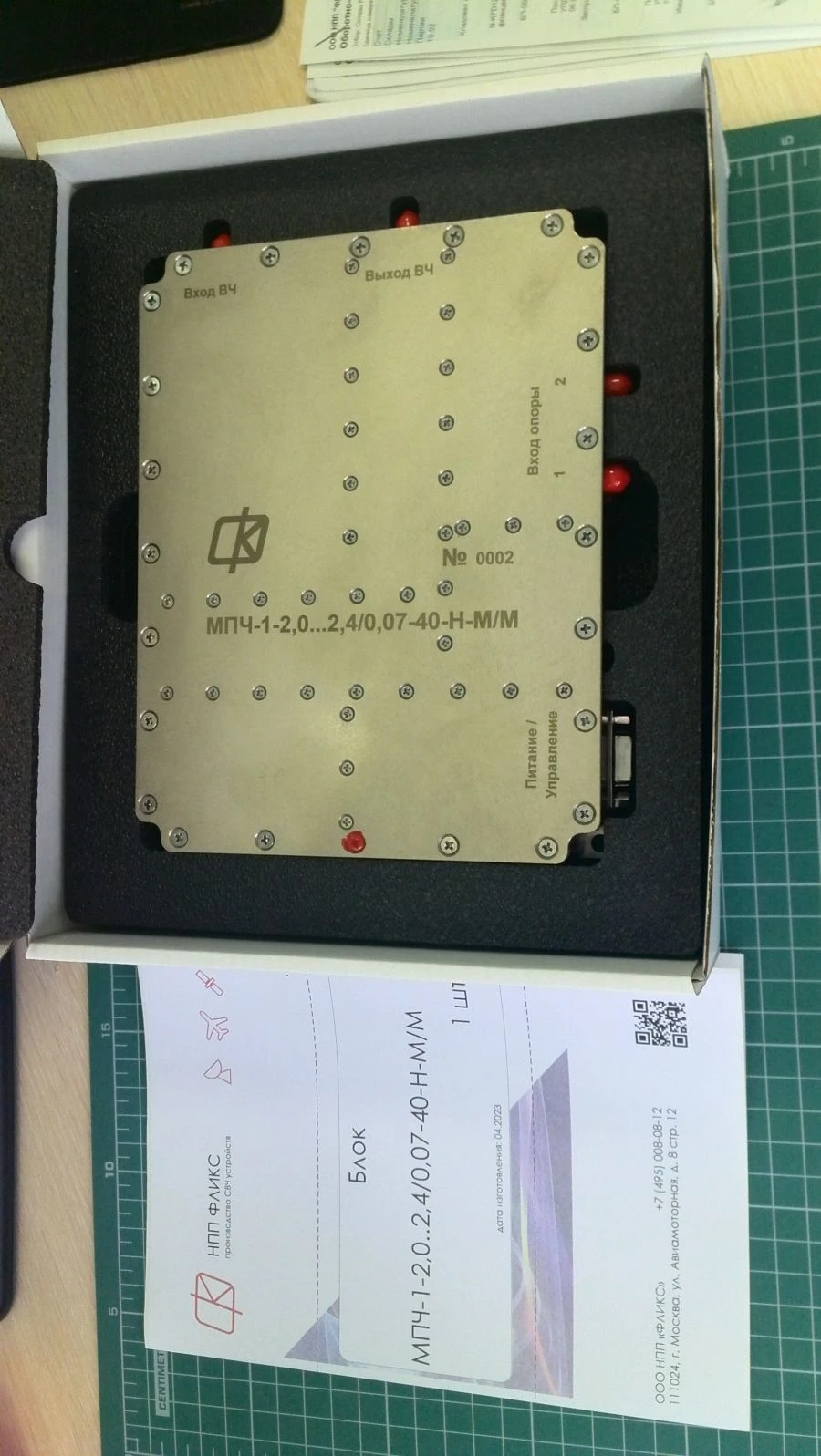

Frequency Transfer Module MПЧ-1-2.0...2.4/0.07-40-N-M/M for Signal Processing

The device is designed to transfer the spectrum of frequencies from the L band to the frequency of 70 MHz with a controlled frequency transfer, with an end-to-end signal amplification of 10 dB. The filter at the output provides filtering of conversion products, sum and difference of received harmonics, suppression of the mirror channel. The bandwidth is 40 MHz.
