Floating Snow and Swamp Vehicle TTM-3904GM for Versatile Applications

Snow Terrain Vehicles

Manufacturer: TRANSPORT LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

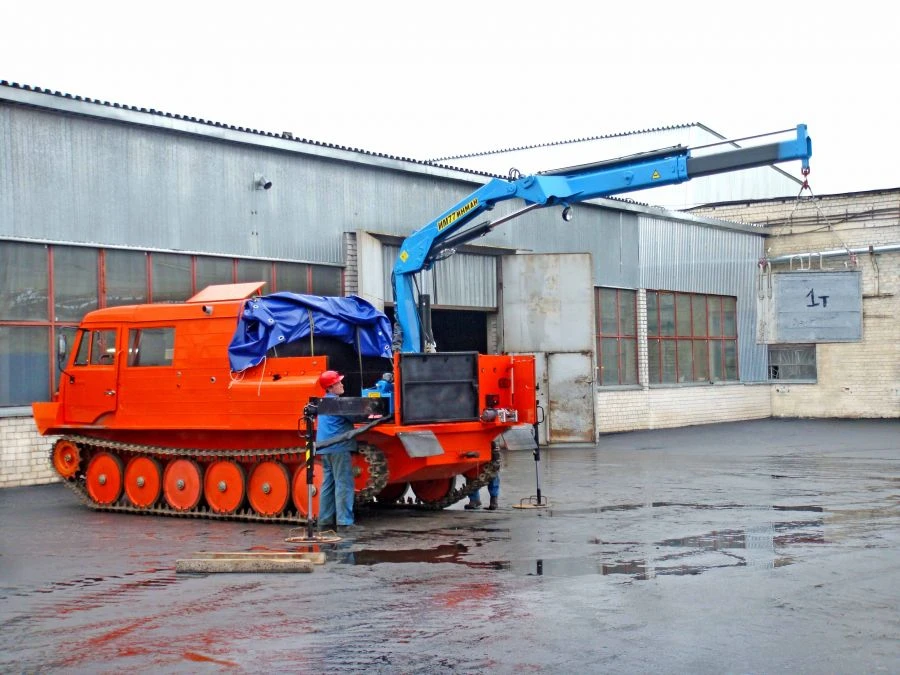

The floating snowmobile with crane-manipulator unit (CMU) has a welded, hermetically sealed body with a central insulated engine compartment. In the cargo compartment there is a crane-manipulator unit IM-77 (by agreement it is possible to equip the vehicle with CMU IM 40T-023 or Amco VEBA 808N-2S or similar, it is also possible to equip it with a single or double cradle). The crane is designed for loading, unloading and transporting various cargoes, equipment, loading and unloading operations, as well as maintenance of power lines if equipped with a cradle in off-road conditions, including snowfields (without limiting the depth of snow cover), loose sands and swamps of all types with overcoming water obstacles afloat. To ensure stability during operation, the crane-manipulator has two retractable legs, which in the transport position are pushed into the body dimension and tilted upwards, thereby not creating additional resistance to the movement of the machine off-road.

Specifications

Engine displacement

4750

Type

Crawler snowmobile

Number of engine cylinders

4 pcs

Number of seats

6 pcs

Engine type

turbocharged four-stroke diesel engine

Motor power

176.8 hp

Fuel supply system

Fuel injectors, injectors

Brake type

Pedal-operated belt brakes of the slewing gear with hydraulic actuator

Type of engine cooling

Liquid, closed

Equipment

Standard

Type of product according to PP RF 616

Snowmobile means of transportation

Fuel tank

380 l

Mark

TTM-3904GM

Curb weight

7600 kg

Payload

1000 kg

Average specific pressure on the ground

0.157 MPa

Maximum land speed

Speed afloat

Maximum lifting angle

Maximum roll angle

Minimum turning radius

2.2 m

Overall dimensions, length

6480 mm

Overall dimensions, width

2500 mm

Overall dimensions, height

2888 mm

Ground clearance

400 mm

Caterpillar

380 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
