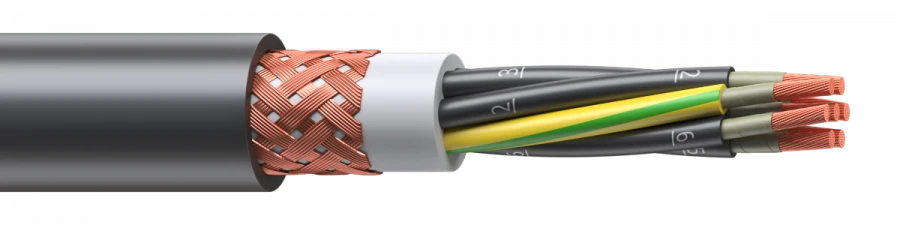

Flexible Cable KGVEV/ng(A)/ng(A)-LS/ng(A)-FRLS for Power Transmission and Control

Control System Cables

Manufacturer:Podolsk Cable OJSC

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Flexible cables with polyvinylchloride insulation and sheathing, not spreading combustion and fire-resistant, designed for transmission and distribution of electricity in power circuits and circuits of control and management on machines and mechanisms at voltage 0,66 and 1 kV AC frequency of 60 Hz or DC voltage up to 1000 and 1500 V respectively, used for non-stationary laying. Service life - not less than 30 years. at operation in the temperature range from minus 50 to +50°C. For cables with index XL - from minus 60 to plus 50 °?.

Specifications

Insulation material

- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinylchloride plasticate of reduced fire hazard; - for KGVEVng(A) polyvinylchloride plasticate

Core material

copper multi-wire (class 4 according to GOST 22483)

Winding

for ??????/??(?)-FRLS mica-containing tape

Twisting

insulated cores of cables are twisted into a core

Inner shell

- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinylchloride plasticate of reduced fire hazard; - for KGVEV/ng(A) polyvinylchloride plasticate

Screen

copper wire

Outer shell

- for KGVEV/ng(A)-LS/ng(A)-FRLS polyvinyl chloride plasticate of reduced fire hazard. - for KGVEV/ng(A) polyvinylchloride plasticate of reduced flammability.

Numerical marking of insulated conductors

Insulated conductors of cables are digitally marked (starting from 1) to identify each conductor during installation. The index "G" in the markings indicates the presence of a grounding conductor (green-yellow)

Section

0.5 to 50.0 mm²

Number of cores

1 to 70

Fire hazard class

for KGVEVng(A)-FRLS according to GOST 31565-2012: P1b.7.2.2.2. for KGVEVng(A)-LS according to GOST 31565-2012: P1b.8.2.2.2. for KGVEVng(A) according to GOST 31565-2012: P1b.8.2.5.4.

Voltage

0.66 and 1 kV

Climatic version

Climatic version B, placement categories 2-5 according to GOST 15150-69

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
