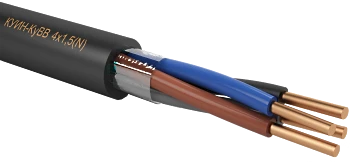

Available for ImportFire-Resistant Installation Cable with Copper Conductors KUIB-KuGPPng(A)-FRHF for Safe Electrical Installations
Manufacturer:DONKABEL LLC
Price:Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Available Models
Installation cable with copper conductors, mark KUIN-KUIVVVng(A)-LSInstallation cable, with copper conductors, mark KUIN-KUGVVVng(A)-LSInstallation cable, fire-resistant, with copper conductors, mark KUIN-KUGTTTng(A)-FRInstallation cable with copper conductors, mark KUIN-KUIVVV-HLInstallation cable with copper conductors, mark KUIN-KUPPPng(A)-HF
Description
Cables universal, installation fire-resistant, with insulation and sheathing made of halogen-free polymer compositions, with flexible copper cores, nominal cross-section from 0,75 to 50 mm², with the number of cores from 2 to 5 inclusive, used for electrical installations for stationary installation in lighting networks, as well as for the installation of electrical equipment, machinery, mechanisms and machine tools for rated voltage up to 300/500 V inclusive, frequency up to 400 Hz or DC voltage up to 1000 V inclusive.
Specifications
Core material
flexible copper
Number of cores
2...5 pcs
Core cross section
0.75...50 mm²
Insulation material
Halogen-free polymer compositions
Sheath material
Halogen-free polymer compositions
Index "FR"
fireproof
Minimum cable installation temperature
minus 15 °C
Operating temperature
-50 to +70 °C
