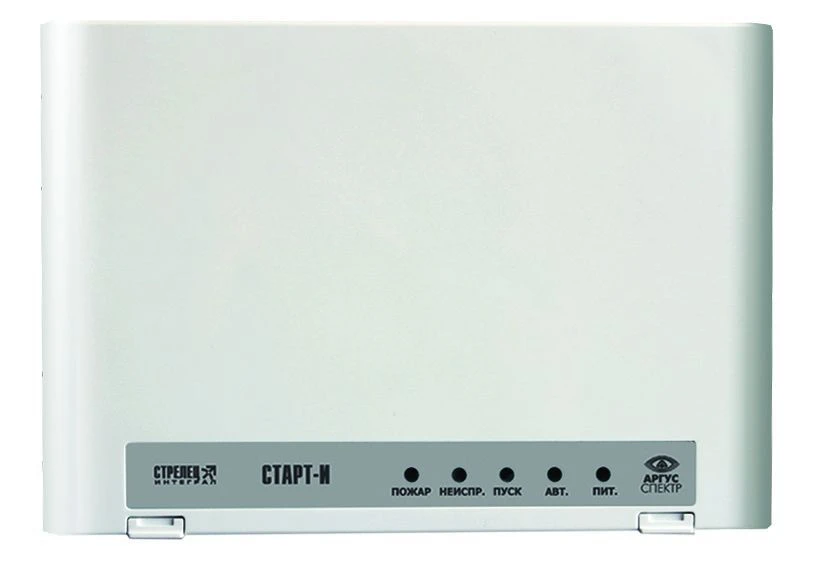

Fire Alarm Control and Monitoring Device Start-I for Integrated Safety Systems

PPKUP Start-I is designed to protect a single fire zone as part of an integrated security system "Strelets-Integral". It can be used as a standalone PPKUP. The delivery set Start-I includes: Power Supply Unit BP-Tr (with accessories) and Fire Extinguishing Control Panel PUPT-S1.Start-I has 4 monitored outputs to control automatic fire extinguishing systems.

Electrical characteristics of the outputs: Voltage at the activated output - 12 V. Maximum current output - 2.2 A. Start-I has 2 fire alarm loops designed to connect passive and active fire detectors.

Nominal voltage on fire alarm loops is 24 V. Start-I has 2 power inputs: the main power supply is provided from the AC mains 50±1 Hz rated voltage of 220 V; backup power is provided from the built-in battery capacity of 2.2 Ah rated voltage of 12 V.
